EDAC | 306-008-500-102

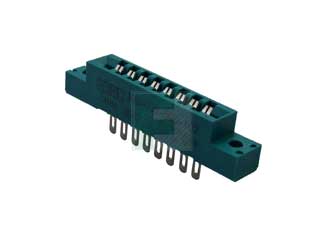

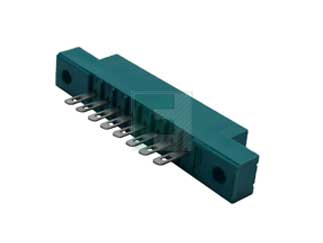

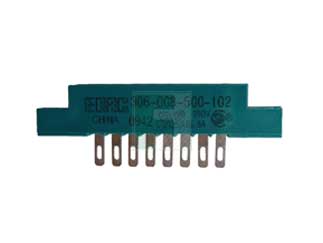

The 306-008-500-102 is a Part of 306 Series Board to Board Receptacle 0.156 in Through Hole Card Edge Connector

Features:

• 306/316//356 series UL recognized
• .156 (3.96) contact spacing with single centreline row
• Accepts .062 (1.57) nominal thickness P.C. board
• Low profile insulator body, .460 (11.68)
• Contact termination options include P.C. tail & wire hole

Specifications:

• Insulator Material: thermoplastic polyester, UL 94V-0
• Contact Material: copper, nickel, tin alloy, CA-725
• Contact Plating: gold on the mating area, tin on the contact tails, nickel underplate
• Current Rating: 5 amperes continuous
• Contact Resistance: 10 milliohms maximum
• Insulation Resistance: 5000 megohms minimum
• Operating Temperature: -65 to +105 degrees C
• Insertion Force: 16 oz (4.45 N)
• Withdrawal Force: 1 oz (0.28 N)
• Large variety of mounting options
• Pre-assembled card guides available
• Accepts between contact and in-contact polarizing keys
