306-240-318

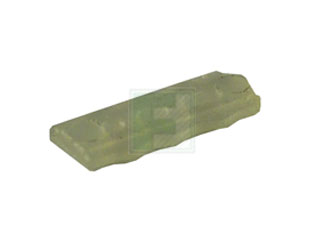

306 Series Board to Board Receptacle 0.156 in Through Hole Card Edge Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | EDAC | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
EDAC 306-240-318 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=306-240-318&field4=EDAC&field18=https://p1na.futureelectronics.com/p/interconnect--backplane-connectors--backpanel-connectors/306-240-318-edac-8975591
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=306-240-318&field4=EDAC&field18=https://p1na.futureelectronics.com/p/interconnect--backplane-connectors--backpanel-connectors/306-240-318-edac-8975591
EDAC 306-240-318 - Technical Attributes
Attributes Table
| Type: | Board to Board (Card Edge) |
| Style/Orientation: | Receptacle |
| No of Positions: | 20 |
| Pitch: | 3.96 mm |
| Termination: | Solder Pins/Tails |
| Mounting Method: | Through Hole |
Features & Applications
The 306-240-318 is a Part of 306 Series Board to Board Receptacle 0.156 in Through Hole Card Edge Connector
Features:
- 306/316//356 series UL recognized
- .156 (3.96) contact spacing with single centreline row
- Accepts .062 (1.57) nominal thickness P.C. board
- Low profile insulator body, .460 (11.68)
- Contact termination options include P.C. tail & wire hole
Specifications:
- Insulator Material: thermoplastic polyester, UL 94V-0
- Contact Material: copper, nickel, tin alloy, CA-725
- Contact Plating: gold on the mating area, tin on the contact tails, nickel underplate
- Current Rating: 5 amperes continuous
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 5000 megohms minimum
- Operating Temperature: -65 to +105 degrees C
- Insertion Force: 16 oz (4.45 N)
- Withdrawal Force: 1 oz (0.28 N)
- Large variety of mounting options
- Pre-assembled card guides available
- Accepts between contact and in-contact polarizing keys
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
9 Weeks
Quantity
Unit Price
1,000
$0.325
2,000
$0.32
3,000
$0.315
5,000+
$0.31
Product Variant Information section
Available Packaging
Package Qty:
1000 per Box
Mounting Method:
Through Hole
