Manufacturer Part #
5106012-1

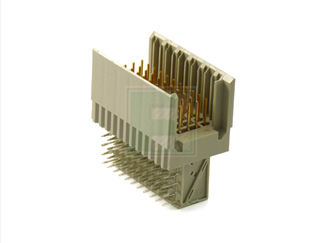

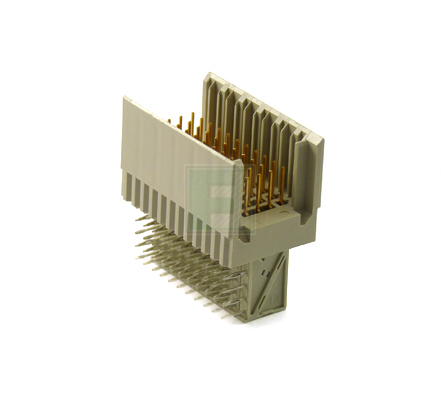

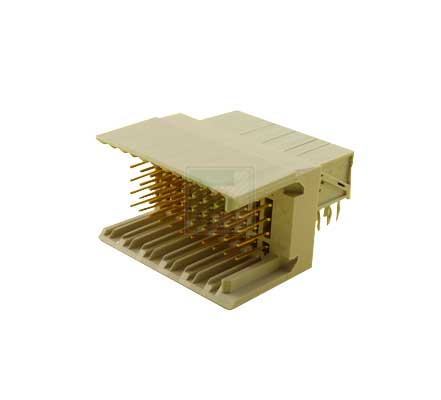

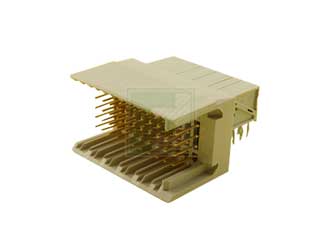

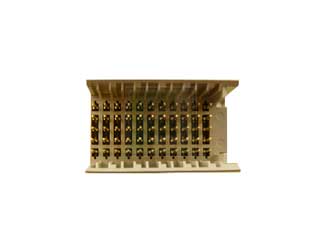

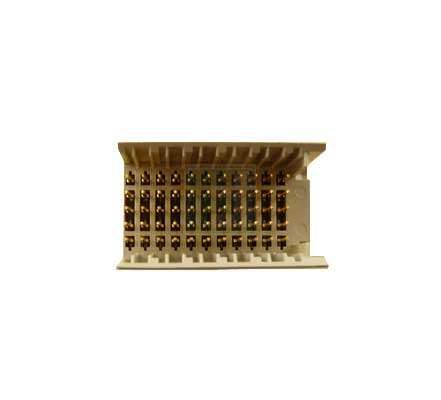

Type C 55 Position 2 mm Plug Right Angle Hard Metric PCB Mount Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:330 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 5106012-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Product Description:Z-PACK 2mm HM, Hard Metric Backplane Connectors, ZIF High Speed Surface Mount.General Description of ChangesManufacturing location change.Reason for Changes:We are experiencing capacity issue and we plan to transfer below production lines to outsourcing production, supplier will be qualified subcon supplier of TE QD.First Ship Date of Changed Items (Changed Parts Only):14-SEP-2025
Description of Changes: We plan to transfer back existing assembly lines from a TE leased site in Qingdao high tech zone to TE s main campus in Qingdao for Data and Devices business unit. Target transfer schedule to be finished by the end of January 2024.Reason for Changes: To streamline TE s operating efficiencies and align manufacturing resources based on our internal footprint evaluation.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5106012-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--backplane-connectors--backpanel-connectors/5106012-1-te-connectivity-9535311
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5106012-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--backplane-connectors--backpanel-connectors/5106012-1-te-connectivity-9535311
TE Connectivity 5106012-1 - Technical Attributes
| Type: | Board to Board |
| Style/Orientation: | Right Angle Header/Plug |
| No of Positions: | 55 |
| Pitch: | 2 mm |
| Termination: | Solder |
| Mounting Method: | Through Hole |
Features & Applications
The 5106012-1 is a 55 position hard metric PCB mount connector.
Features:
- Product Type = Connector
- Connector Type = Connector Assembly
- PCB Mounting Orientation = Right Angle
- Type = Type C
- Interface Type = 2mm HM
- Termination End Plating = Tin over Nickel
- Contact Style = Short Tail
- Contact Base Material = Phosphor Bronze
- Connector Style = Plug
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
Available Packaging
Package Qty:
330 per Tube
Mounting Method:
Through Hole
