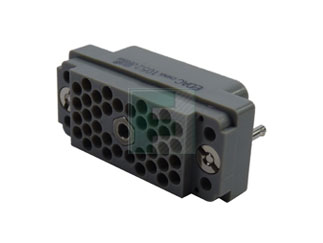

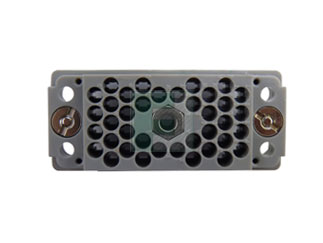

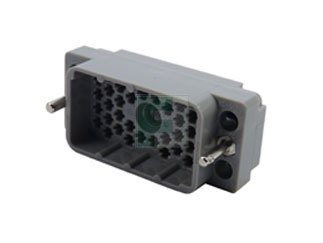

EDAC | 516-038-000-302

The 516-038-000-302 is a part of 516 Series 38 postion plastic cover Top entry Standard clamp Rack & Panel Plug with locknut polarizing hardware

Features:

• UL Recognized
• .150 (3.81) Contact Spacing x .130 (3.30) or
• .150 (3.81) Row Spacing with Staggered Grid
• Plug and Receptacle available:
• 20, 38, 56, 90 or 120 contact sizes
• Edacon hermaphroditic contact mating design
• Contact termination options include:
• Crimp, P.C. Tail, Wire Hole, Wire Wrap, & Taper Tail
• Mating and unmating simplified with actuating screws
• Optional covers with side or top entry cable clamp in plastic or metal material
• Polarizing hardware adjustable for 288 mating combinations
• Tools available for contact installation, removal, and crimping and polarizing changes

Specifications:

• Insulator Material:
• Diallyl Phthalate or Thermoplastic Polyester, UL 94V-0
• Color: Green, or Polycarbonate, Colour: Grey
• Contact Material:  Phosphor Bronze Alloy CA-510
• Contact Plating:  Gold over nickel for entire contact
• Cover Material:  Polycarbonate
• Color:  Green, or Die-Cast Zinc, finished with grey enamel paint
• Current Rating:  8.5 Amperes
• Contact Resistance:  10 Milliohms maximum
• Dielectric Withstanding Voltage:  2000 V AC rms at sea level
• Insulation Resistance:  5000 Megohms minimum
• Operating Temperature:  -65 to +125 degrees C
• Insertion and Withdrawal Force:  2 to 16 oz (0.56 to 4.45N) per contact position
