Manufacturer Part #
535090-4

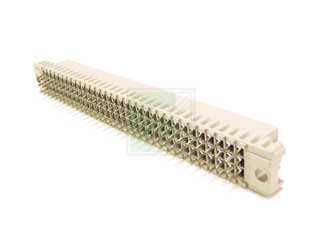

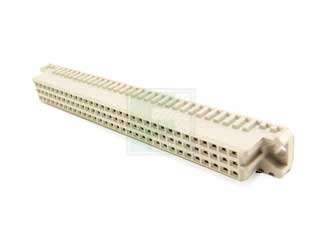

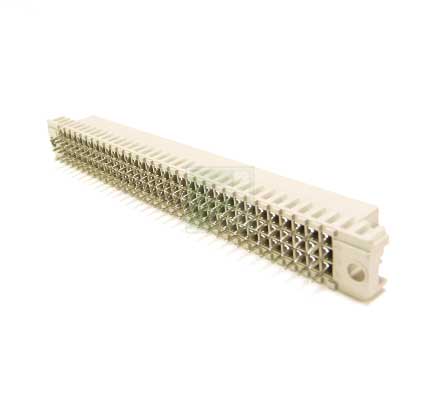

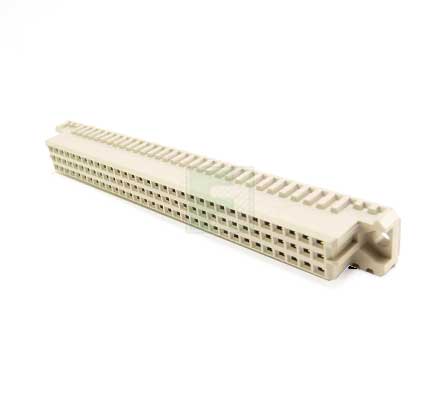

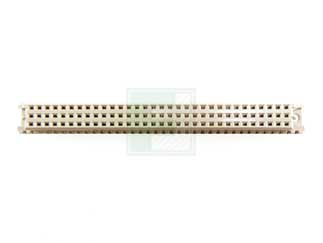

96 Position 2.54 mm Receptacle Shroud Eurocard With Mounting Hole Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:150 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 535090-4 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Description of Changes: We plan to outsource TE existing assembly lines (i.e. transfer existing assembly lines to TE s suppliers). Target transfer schedule to be finished by the end of January 2024.Reason for Changes: To streamline TE s operating efficiencies and align manufacturing resources based on our internal footprint evaluation.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=535090-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--backplane-connectors--backpanel-connectors/535090-4-te-connectivity-6196775
TE Connectivity 535090-4 - Technical Attributes
| Type: | Board to Board (Card Edge) |
| Style/Orientation: | Receptacle |
| No of Positions: | 96 |
| Pitch: | 2.54 mm |
| Termination: | Solder |
| Mounting Method: | Through Hole |
Features & Applications
The 535090-4 is a 96 position shroud eurocard receptacle connector with through hole mounting.
Features:
- Connector Type = Connector Assembly
- PCB Mount Retention = Without
- PCB Mounting Orientation = Vertical
- Post Type = Solder Post
- Type = Type C
- Contact Type = Socket
- Contact Base Material = Phosphor Bronze
- Connector Style = Receptacle
- RoHS/ELV Compliance = ELV compliant, 5 of 6 Compliant
Available Packaging
Package Qty:
150 per Box
Mounting Method:
Through Hole
