Manufacturer Part #
5650858-5

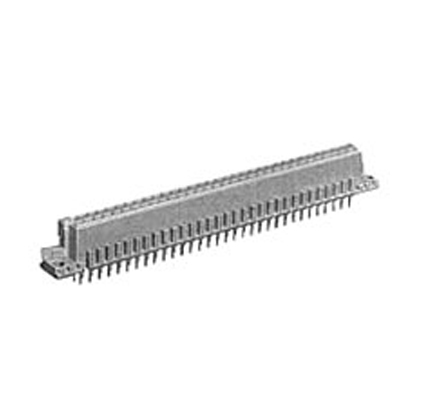

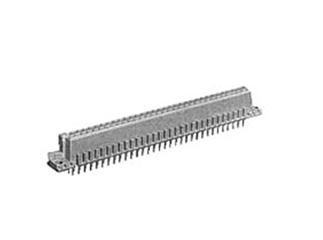

Type B 2.54 mm 32 Position Receptacle Vertical Through Hole Eurocard Connector
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1 per Box Mounting Method:Through Hole |
||||||||||
| Date Code: | 2525 | ||||||||||
TE Connectivity 5650858-5 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
General Description of Changes: We plan to outsource TE existing assembly lines (i.e. transfer existing assembly lines to TE s suppliers). Target transfer schedule to be finished by the end of January 2024.Reason for Changes: To streamline TE s operating efficiencies and align manufacturing resources based on our internal footprint evaluation.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5650858-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--backplane-connectors--backpanel-connectors/5650858-5-te-connectivity-2465581
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5650858-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--backplane-connectors--backpanel-connectors/5650858-5-te-connectivity-2465581
TE Connectivity 5650858-5 - Technical Attributes
| Type: | Board to Board (Card Edge) |
| Style/Orientation: | Receptacle |
| No of Positions: | 32 |
| No of Rows: | 2 |
| Pitch: | 2.54 mm |
| Termination: | Solder |
| Material: | Liquid Crystal Polymer |
| Contact Plating: | Tin |
| Current Rating: | 1.5A |
| Operating Temp Range: | -55°C to +105°C |
| Voltage Rating: | 250V |
| Color: | Grey |
| Mounting Method: | Through Hole |
Features & Applications
The 5650858-5 is a 32 position verticle eurocard type B receptacle connector having operating temperature (°C [°F]) = -55 – +125 [-67 – +257].
Features:
- Product Type = Connector
- Connector Type = Connector Assembly
- PCB Mounting Orientation = Vertical
- Contact - Rated Current (A) = 1.5
- Operating Voltage Reference = AC
- Connector Style = Receptacle
- Mating Alignment = With
- Mating Alignment Type = Polarization
- UL Flammability Rating = UL 94V-0
- Application Use = Board-to-Board
- Contact Transmits (Typical Application) = Signal (Data)
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
View the complete 5650858 series of Receptacle Connectors
Available Packaging
Package Qty:
1 per Box
Mounting Method:
Through Hole
