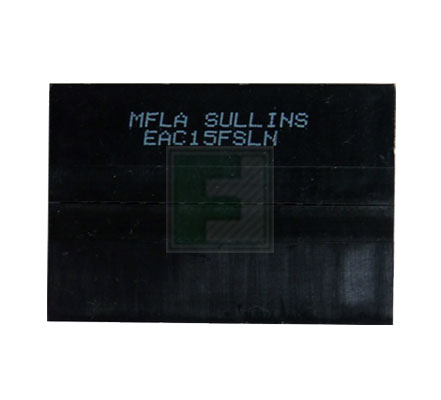

Sullins | EAC15FSLN

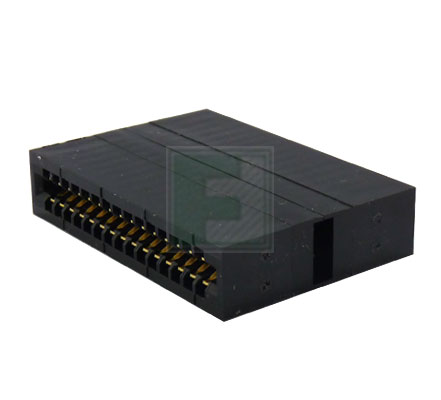

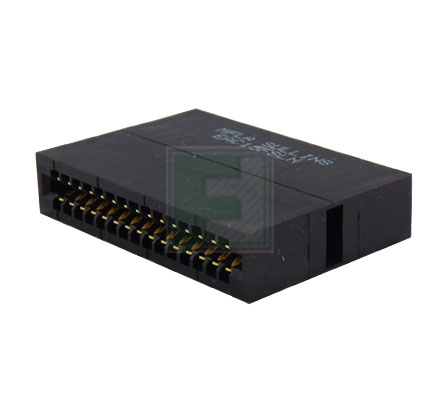

The EAC15FSLN Series is a 15 Position Dual Edge Connector Single Level 2.54mm Pitch Backpanel and Operating Temperature is -65°C to +125°C.

Features:

• PBT/Phosphor Bronze
• Operating Temperature -65°C to +125°C
• Processing Temperature 260° FOR 10 sec MAX
• Contact Surface both sides .000030” Gold
• .100” [2.54mm]
• 30 total contacts
• Dual Edge Connector Single Level
• No Mounting Ears

Specifications:

• Now available in 0.100"[2.54mm] pitch with 5-60 pins per row
• Supports an operating temperature of up to 150°C
• Fits 0.062"[1.57mm]-thick PC boards in both card slots
• Mounting styles include straddle mount, ?ush mounting holes, or no mounting
• Standard 30u" selective gold plating promotes long lasting usage
• Current rating 3 Amperes per contact
• Contact resistance 30 Milliohms max
• Insulation resistance 5000 Megohms
• Alternate contact centers, mounting options and board thicknesses available upon special request

Applications:

• Easily replaceable without the need of desoldering
• High signal integrity connector interface for R&D and Life Tests applications
• HTOL, HAST & LTOL and in-line production and burn-in testing compatible
• Superior durability of 500 mating cycles
