Manufacturer Part #
1-66359-0

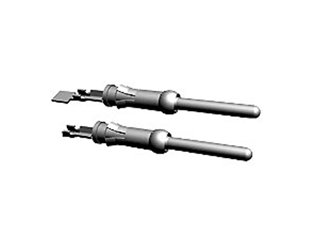

Multimate Type III+ Series 18-14 AWG Wire to Cable Crimp Signal Pin Contact
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:4000 per Reel Mounting Method:Wire Mount | ||||||||||
| Date Code: | 2338 | ||||||||||
TE Connectivity 1-66359-0 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Changes:*** This PCN replaces either PCN-24-2430008, PCN-24-213012 or PCN-24-213010 *** Sustainable precious metal plating standardization across product linesReason for Changes:This product improvement is part of our efforts to reduce CO2 emissions and enhance sustainability across our operations, while ensuring consistent performance standards.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-66359-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/1-66359-0-te-connectivity-4241352
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-66359-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/1-66359-0-te-connectivity-4241352
TE Connectivity 1-66359-0 - Technical Attributes
| Mounting Method: | Wire Mount |
Features & Applications
The 1-66359-0 is a Part of Multimate Type III+ Series 18-14 AWG Wire to cable Crimp Signal Pin Contact.
Features:
- Series = Type III+
- Termination Method to Wire/Cable = Crimp
- Wire/Cable Type = Discrete Wire
- Termination End Plating = Gold Flash
- Pin Diameter (mm [in]) = 1.57 [0.062]
- Wire Range (mm [AWG]) = 0.80-2.00² [18-14]
- Spring Material = Stainless Steel
- Used With = G Series Connectors, M Series Connectors, CPC Connectors
- Contact Type = Pin
- Contact Classification = Signal
- Contact Plating, Mating Area, Material = Gold(30)
- Contact Base Material = Brass
- Contact Size = 16
- Accepts Wire Insulation Diameter, Range (mm [in]) =2.03 – 2.54 [0.080 – 0.100]
- Applies To = Wire/Cable
- Test Current (A) = 13.0
Available Packaging
Package Qty:
4000 per Reel
Mounting Method:
Wire Mount
