Manufacturer Part #
1-794610-1

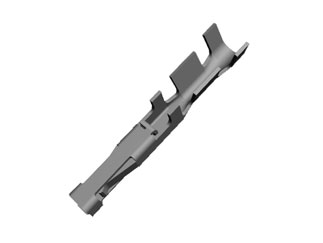

Micro MATE-N-LOK 24 - 20 AWG Wire to Cable Crimp Snap-In Socket Contact
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Bag Mounting Method:Wire Mount | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 1-794610-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Product Description:CONTACT, RECEPTACLE, CRIMP SNAP-IN, MICRO MATE-N-LOKDescription of ChangesThere are some dimensions in the loose piece customer drawings divergent from strip customer and production drawings. We are correcting those dimensions since loose-piece terminals are make from strip terminals!Reason for Changes:There are some dimensions tolerance in customer drawing in desagreement with what is specified in our production drawing. Then, we are correcting to avoid issues in future! This does not affect product functional because our products follow production drawings and it has been provided for a long time in this way!First Ship Date of Changed Items (Changed Parts Only):29-NOV-2022
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-794610-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/1-794610-1-te-connectivity-7925720
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-794610-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/1-794610-1-te-connectivity-7925720
TE Connectivity 1-794610-1 - Technical Attributes
| Type: | Contact |
| Contact Termination: | Crimp Terminal |
| Wire Gauge: | AWG 24-20 |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Gold |
| Operating Temp Range: | -40°C to +105°C |
| Voltage Rating: | 250V |
| Mounting Method: | Wire Mount |
Features & Applications
The 1-794610-1 is a Micro MATE-N-LOK 3 mm Connector System is a wire-to-wire and wire-to-board connector system with contacts on a 3 mm [.118] centerline.
Typical uses of the Micro MATE-N-LOK 3 mm Connector System include the appliance, instrumentation, industrial machinery, home equipment,and security system industries.
Features:
- Product Type = Contact
- Wire Range (mm [AWG]) = 0.20-0.60² [24-20]
- Termination Method = Crimp
- Voltage Rating: 250 V
- Current Rating: 5.0 A max. on 20 AWG wire
- Contact Resistance: 20 milliohms max. final
- Dielectric Withstanding Voltage: 1500 VAC
- Insulation Resistance: 1000 megohms min.
- Operating Temperature: -40 °C to +105 °C
- Packaging Method = Loose Piece
Available Packaging
Package Qty:
500 per Bag
Mounting Method:
Wire Mount
