TE Connectivity | 1586315-1

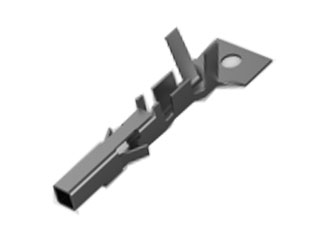

The 1586315-1 is a 24-18 AWG Socket Crimp VAL-U-LOK Series Connector System. The AMP Soft Shell Pin and Socket Connectors provide a highly reliable and economic means of grouping multiple-lead connections in today’s computer, computer/ peripheral equipment, business machines, entertainment centers, appliances and other sophisticated commercial equipment.

The electrical connector is an integral component in these applications. They also offer worldwide application approval because of their reliability and economy. Electrical functions have increased in complexity and new designs continually call for the maximum use of space.The Soft Shell Pin and Socket family of connectors offers the design and features to answer these modern industry requirements.

Features:

• Product Type = Contact
• Termination Method to Wire/Cable = Crimp
• Strain Relief = With
• Contact Current Rating, Max (A) = 9
• Operating Voltage Reference = AC
• Operating Voltage (VAC) = 600
• Strain Relief Type = Insulation Crimp
• Length (X-Axis) (mm [in]) = 14.55 [0.573]
• Contact Type = Socket
• Contact Base Material = Brass
• Contact Plating, Mating Area, Material = Pre-Tin
• Contact Plating, Mating Area, Thickness (µm [µin]) = 2.54 [100]
• Contact Design = Single Beam
