Manufacturer Part #
208488-1

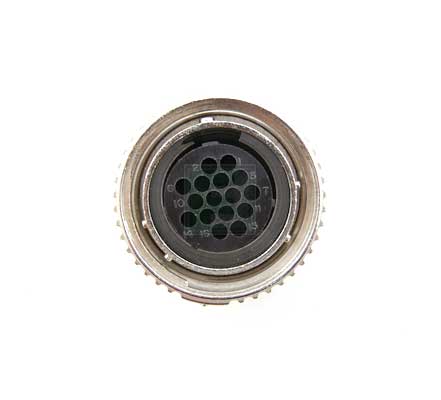

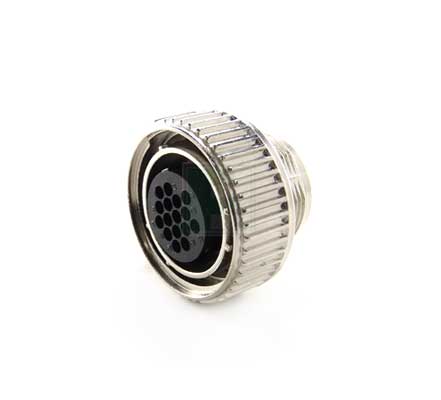

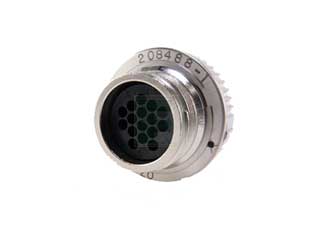

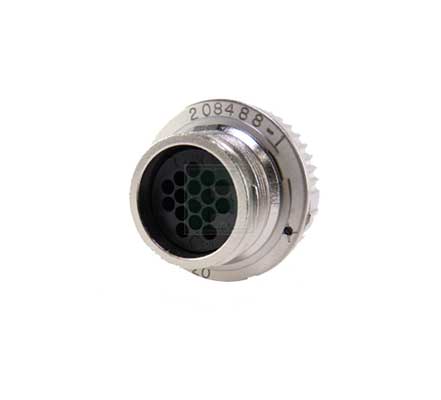

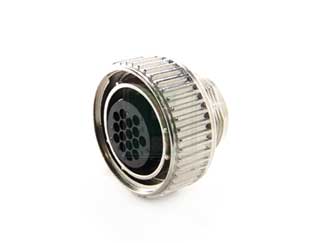

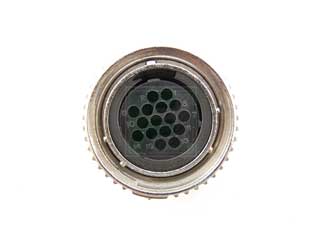

CPC Series 1 Free Hanging Plug 16 Position Circular Plastic Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:80 per Bag | ||||||||||
| Date Code: | 2535 | ||||||||||
TE Connectivity 208488-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=208488-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-circular/208488-1-te-connectivity-8930760
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=208488-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-circular/208488-1-te-connectivity-8930760
TE Connectivity 208488-1 - Technical Attributes
| Type: | CPC-Connector |
| Style/Orientation: | Free Hanging Plug |
| No of Positions: | 16 |
| Mating Type: | Detent Lock |
| Termination: | Female/Socket Crimp |
| Material: | Metal |
| Shell Size: | 22 |
| Operating Temp Range: | -55°C to +125°C |
Features & Applications
The AMP Metal-Shell Circular Plastic Connectors offer the reliability of higher priced all metal connectors at a fraction of the cost, and are offered in the more popular contact configurations. Connector housings are made of lightweight, sturdy, thermoplastic material that are UL 94V-0 rated, with zinc alloy, nickel plated shells for added strength and protection. These connectors are available in a variety of configurations to meet your signal, low current and high current requirements. Operating temperatures range from -55° C to +125° C [-67° F to +257° F].
Features:
- Connector Type = Housing
- Mount = Free Hanging
- Mount Angle = Straight
- Shell Size = 22
- Number of Power Positions = 0
- Mating Retention Type = Threaded Coupling
- Number of Positions = 16
- Number of Signal Positions = 16
- Mount Style = Flange with Mounting Holes
- Shell Plating = Nickel
- Contact Type = Socket
- Reverse Gender = Standard
- Connector Style = Plug
- Mating Alignment Type = Keyed
- Housing Material = Thermoplastic - GF
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
Available Packaging
Package Qty:
80 per Bag
