Manufacturer Part #
213729-9

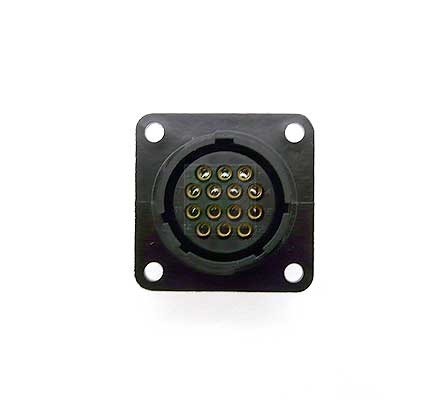

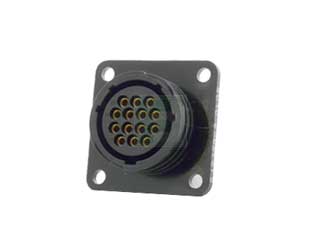

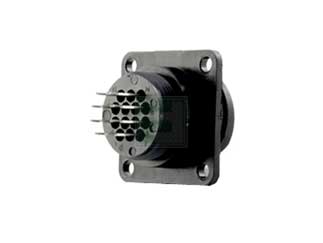

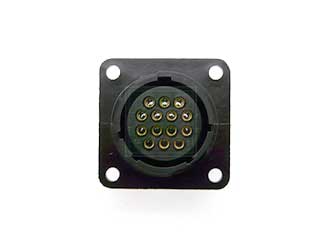

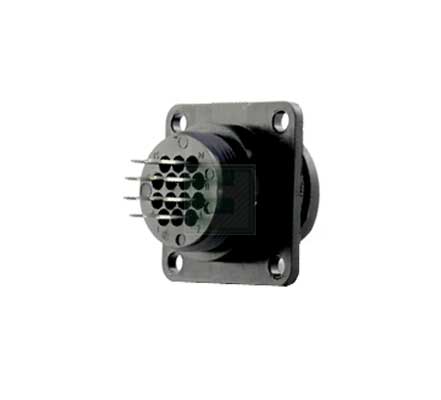

CPC Series 1 Free Hanging Receptacle 14 Position Circular Plastic Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:192 per Tray | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 213729-9 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Changes:*** This PCN replaces either PCN-24-2430008, PCN-24-213012 or PCN-24-213010 *** Sustainable precious metal plating standardization across product linesReason for Changes:This product improvement is part of our efforts to reduce CO2 emissions and enhance sustainability across our operations, while ensuring consistent performance standards.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=213729-9&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-circular/213729-9-te-connectivity-9826371
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=213729-9&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-circular/213729-9-te-connectivity-9826371
TE Connectivity 213729-9 - Technical Attributes
| Type: | CPC-Connector |
| Style/Orientation: | Panel Mount Receptacle |
| No of Positions: | 14 |
| Mating Type: | Threaded |
| Termination: | Female/Socket Solder |
| Material: | Plastic |
| Shell Size: | 17 |
| Operating Temp Range: | -40°C to +105°C |
Features & Applications
Overview:
Tyco Electronics is the world’s leading connector manufacturer. Tyco Electronics CPC (Circular Plastic Connector) series is one of the most popular all plastic connectors in use today.
CPCs lightweight rugged body construction and positive-lock coupling ring ensures this connector family is well suited for a wide variety of applications including operation within harsh environments where operating temperature might vary from -55C to 125C.
Available in panel or chassis mount and free-hanging configurations, the CPC family offers interconnect solutions for wire-to-wire, panel-to-panel and wire-to-board applications.
213729-9 is a Series 1 reverse gender panel mount receptacle with 14 (preloaded) positions. The 213729-9 is a size 17 shell with gold socket contacts designed for PCB termination.
See Related Products for mating pairs.
Available Packaging
Package Qty:
192 per Tray
