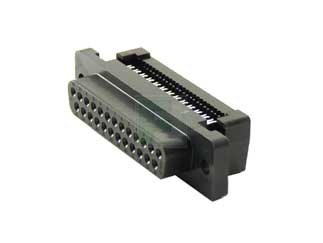

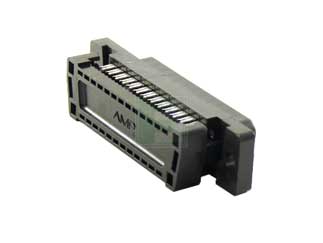

HDF-20 Series 25 Position Free Hanging Socket IDC Standard Cable Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:40 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | 2424 | ||||||||||
Product Specification Section
TE Connectivity 1658614-2 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1658614-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-d-subs/1658614-2-te-connectivity-3158755
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1658614-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-d-subs/1658614-2-te-connectivity-3158755
TE Connectivity 1658614-2 - Technical Attributes
Attributes Table
| Style/Orientation: | Standard Free Hanging Receptacle |
| No of Positions: | 25 |
| Termination: | IDC |
| Material: | Plastic |
| Mounting Method: | Through Hole |
Features & Applications
The 1658614-2 is a Part of HDF-20 Series with 25 Position, Free Hanging Socket IDC Standard cable D-SUB Connector. Its Operating temperature ranges from -55 °C to 105 °C.
Product Features:
- Product Type = Connector
- Product Series = HDF-20 (Ribbon Cable)
- Wire/Cable Type = Ribbon Cable
- Termination Method to Wire/Cable = Insulation Displacement Crimp (IDC)
- Mating Connector Lock Type = Mounting Holes
- Shell Size = 3
- Shell Type = All Plastic
- Grade = Standard
- Profile = Low
- Color = Black
- Cover Material = Thermoplastic
- Solder Tail Contact Plating = Tin over Nickel
- Number of Positions = 25
- Wire Range (mm² [AWG]) = 0.08 - 0.15 [28-26]
- Cable Insulation Diameter (mm [in]) = 0.81 – 0.97 [0.032 – 0.038]
- Ribbon Cable Centerline Spacing (mm [in]) = 1.27 [0.050]
- Contact Type = Socket
- Contact Base Material = Phosphor Bronze
- Contact Plating, Mating Area, Material = Gold (30)
- Contact Size = 20
- Connector Style = Receptacle
- Housing Material = Thermoplastic - GF
- UL Flammability Rating = UL 94V-0
