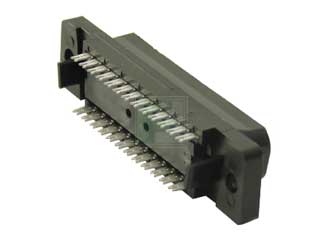

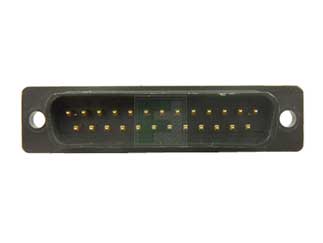

TE Connectivity | 1658615-2

The 1658615-2 is a Part of HDF-20 Series, 25 Position Free Hanging Plug IDC Standard Cable Connector and its Operating Temperature ranges from -55°C to 105°C.

Product Features:

• Product Type = Connector
• Product Series = HDF-20 (Ribbon Cable)
• Wire/Cable Type = Ribbon Cable
• Termination Method to Wire/Cable = Insulation Displacement Crimp (IDC)
• Mating Connector Lock = With
• Mating Connector Lock Type = Mounting Holes
• Shell Size = 3
• Shell Type = All Plastic
• Grounding Indents = With
• Grade = Standard
• Profile = Low
• Color = Black
• Cover Material = Thermoplastic
• Number of Positions = 25
• Wire Range (mm² [AWG]) = 0.08 - 0.15 [28-26]
• Cable Insulation Diameter (mm [in]) = 0.81 – 0.97 [0.032 – 0.038]
• Ribbon Cable Centerline Spacing (mm [in]) = 1.27 [0.050]
• Optional Cable Stabilizer = 747275-2
• Strain Relief Part Number = 747275-2
• Preloaded = Yes
• Contact Type = Pin
• Contact Base Material = Phosphor Bronze
• Contact Plating, Mating Area, Material = Gold Flash over Palladium Nickel or Gold (30) over Nickel
• Contact Size = 20
