HDF-20 Series 50 Position Plug Crimp Snap Standard Cable Connector
|Mfr. Name:||TE Connectivity|
Description of Changes Package material changed, TE wants to use EPE instead of foam, detail see the attached report, replace the material of the cushion. Reason for Changes: Product improvement.Product improvement. TE wants to use EPE instead of foam, TE has passed the drop test, detail see the attached drop test report.
|Style/Orientation:||Standard Cable Plug|
|No of Positions:||50|
|Mounting Method:||Through Hole|
Features & Applications
Tyco Electronics is the world’s leading connector manufacturer. Tyco Electronics Amplimite family of subminiature D connectors is the industry’s most extensive and versatile. These subminiature D connectors have become the most popular type of input/output (I/O) connectors in use today.
Established and proven, they are rugged, easily used and have been widely adopted in standards for serial communications, telecommunications and local area networks (LANS).
Available in panel mount or free hanging configuration, Amplimite family offers interconnect solutions for wire-to-board, panel-to-panel and wire-to-panel applications. A wide choice of shell sizes, number of positions and contact sizes is also available.
Amplimite HDP-20 Crimp Snap-In Contact Series represents the core of the Amplimite offer, providing a lower cost, commercial version of the military approved series. This low cost, high performance, precision-formed crimp contact connector has shell sizes that offer a wide selection of contact positions – 9, 15, 25, 37 and 50. HDP-20 series of connectors use size 20 contacts, which are based on .040 inches [1.02 cm] pin diameters with contact centerlines of .109 x .112 inches [2.77 x 2.85 cm]. This size is the most common variety. Crimp snap-in contacts also allows loading of only the number of contact being used.

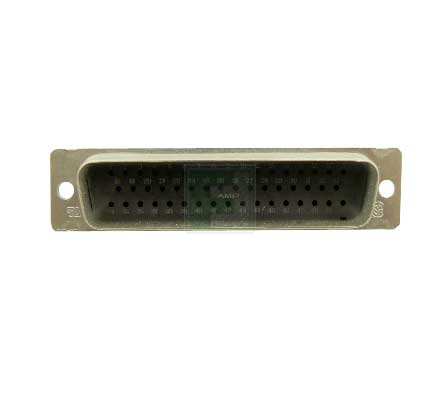

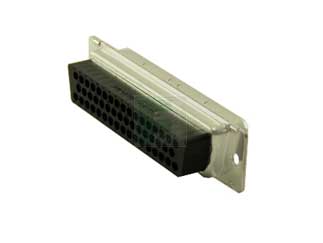

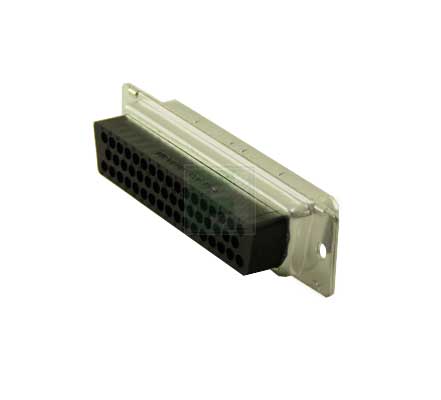

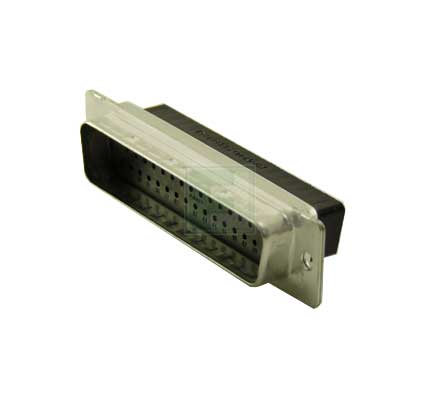

1658641-2 is an Amplimite HDP-20 Series Panel Mount or Free Hanging Plug with 50 (pin/male contact) positions housed in a size 5 full metal tin plated shell body with grounding indents.
The 1658641-2 comes without contacts. See Accessories for Contact options.
