Manufacturer Part #
1658654-1

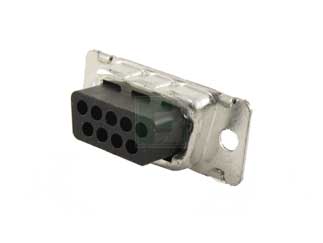

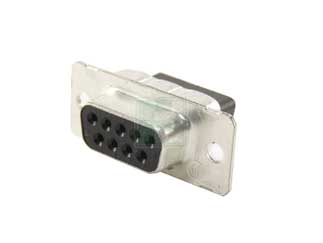

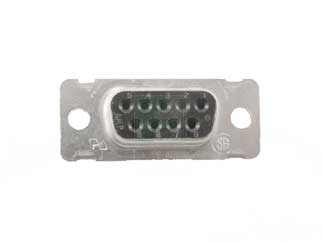

HDP20 Series 9 Position Shielding Hardware Socket Metal Kit D-Sub
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | 2235 | ||||||||||
Product Specification Section
TE Connectivity 1658654-1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1658654-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-d-subs/1658654-1-te-connectivity-5060447
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1658654-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-d-subs/1658654-1-te-connectivity-5060447
TE Connectivity 1658654-1 - Technical Attributes
Attributes Table
| Style/Orientation: | Standard Cable Receptacle |
| No of Positions: | 9 |
| No of Rows: | 2 |
| Termination: | Crimp Snap |
| Material: | Full Metal |
| Shell Size: | 1 E |
| Gender: | Female |
| Color: | Black |
| Current Rating: | 10.42A |
| Insulation Resistance: | 5000MΩ |
| Operating Temperature: | -55°C to +105°C |
| Mounting Method: | Through Hole |
Features & Applications
The 1658654-1 is a Part of HDP-20 Series with 9 Positions, Crimp snap Socket D-SUB Connector.
Product Features:
- Product Type = Connector
- Product Series = HDP-20 (Crimp Snap)
- Mating Connector Lock Type = Jackscrews
- Shell Size = 1
- Shell Type = Full Metal Shell
- Grade = Standard
- Enclosure Material = PVC
- Jackscrew Material = Zinc Alloy
- Color = Black
- Shell Material = Steel
- Shield Material = Steel
- Number of Positions = 9
- Cable Insulation Diameter (mm [in]) = 4.83 – 9.53 [0.190 – 0.375]
- Shell Plating = Tin over Copper
- Shield Plating = Tin
- Insert Material = Thermoplastic
- Insert Flammability Rating = UL 94V-0
- Cable Diameter (Max.) (mm [in]) = 8.89 [0.350]
- Connector Style = Receptacle
- Contact Size = 20
View the Complete HDP-20 Series of D-SUB
Pricing Section
Global Stock:
109
USA:
109
On Order:
0
Factory Lead Time:
19 Weeks
Quantity
Unit Price
1
$9.35
5
$9.22
20
$9.11
50
$9.04
125+
$8.90
Product Variant Information section
Available Packaging
Package Qty:
1 per Box
Mounting Method:
Through Hole
