TE Connectivity | 1658690-1

Manufacturer Part #

1658690-1

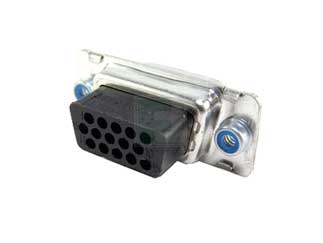

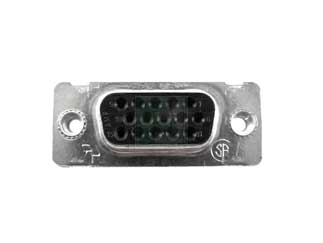

HDP-22 Series 15 Position Front Metal Shell Crimp Snap-In Socket D-Sub

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 1658690-1 - Technical Attributes
Attributes Table
Style/Orientation: Standard Cable Receptacle
No of Positions: 15
Termination: Crimp Snap
Material: Front Metal
Mounting Method: Through Hole
Features & Applications

The 1658690-1 is a Part of HDP-22 Series, 15 Position Front Metal Shell Crimp Snap-In Socket D-Sub Connectors

Product Features:

  • Product Type = Connector
  • Product Series = HDP-22 (Crimp Snap)
  • Mating Connector Lock = With
  • Mating Connector Lock Type = Clinch Nut, 4-40 UNC
  • Shell Size = 1
  • Shell Type = Front Metal Shell
  • Grounding Indents = Without
  • Grade = Standard
  • Color = Black
  • Shell Material = Steel
  • Number of Positions = 15
  • Shell Plating = Tin
  • Insert Material = Nylon
  • Insert Flammability Rating = UL 94V-0
  • Enclosure = Without
  • Connector Style = Receptacle





Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
5 Weeks
Minimum Order:
800
Multiple Of:
800
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$5,952.00
USD
Quantity
Unit Price
800+
$7.44
