Name: TE Connectivity 5787170-7
Brand: TE Connectivity
SKU: 4110797
Price: 5.38 USD
Availability: InStock

Orders shipping outside of United States will be on hold while the company evaluates tariff impacts.
Please contact your salesperson for assistance.

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

5787170-7

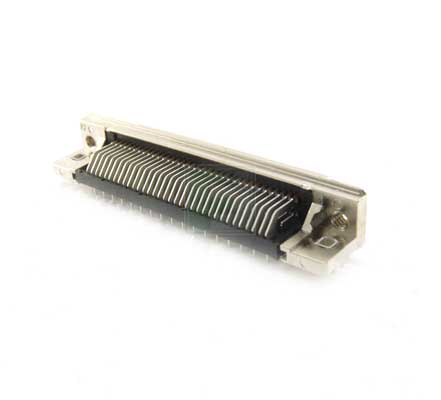

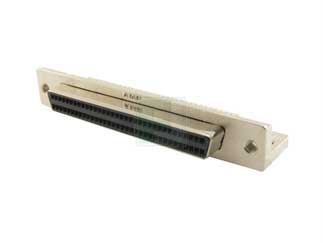

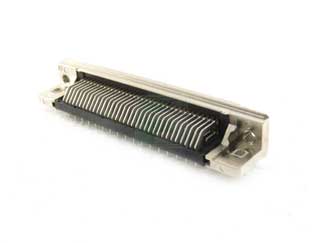

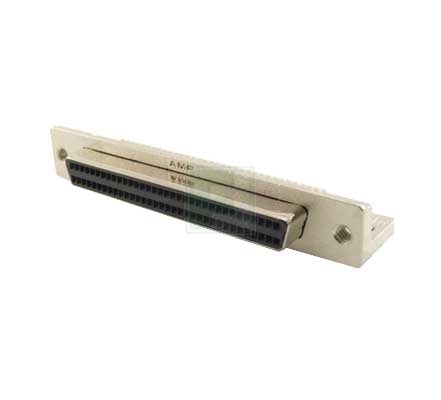

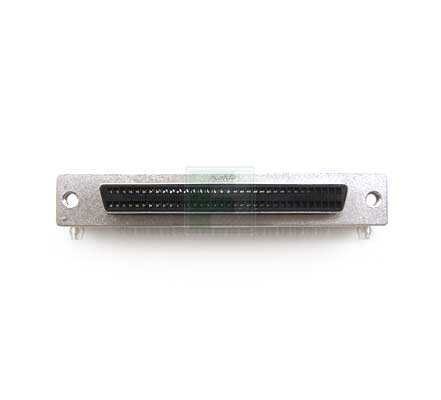

68 Position 1.27 mm Pitch Right Angle Receptacle Board Mount D-Sub Connector

5787170-7 Datasheet 5787170-7 Documentation 3D View Package Drawing
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 288 per Tube Mounting Method: Through Hole
Date Code:

Style/Orientation:	Standard Board Mount Receptacle
No of Positions:	68
Termination:	PCB
Material:	Full Metal
Mounting Method:	Through Hole

The 5787170-7 is a part of 68 Position 1.27 mm Pitch Right Angle Receptacle Board Mount D-Sub Connector.

Features:

Product Type = Connector
PCB Mounting Orientation = Right Angle
Termination Method to PC Board = Through Hole - Solder
PCB Mount Retention = With
PCB Mount Alignment = Without
Shell Type = Full Metal
Boardlock Plating = Tin over Nickel
Termination Post Length (mm [in]) = 2.54 [0.100]
Number of Positions = 68
PCB Mount Retention Type = Boardlock(s)
Contact Plating, Mating Area, Material = Gold (30), Gold Flash over Palladium Nickel
Contact Base Material = Phosphor Bronze
Connector Style = Receptacle
Mating Alignment = Without
RoHS/ELV Compliance = RoHS compliant, ELV compliant
