TE Connectivity | 5787362-9

Manufacturer Part #

5787362-9

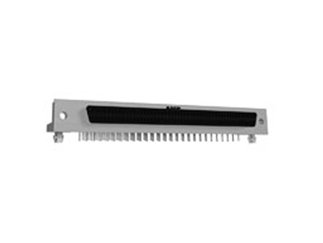

100 Position 1.27 mm Pitch Series III Right-Angle PCB Through Hole Receptacle

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 5787362-9 - Technical Attributes
Attributes Table
Style/Orientation: Standard Board Mount Receptacle
No of Positions: 100
Termination: PCB
Material: Full Metal
Mounting Method: Through Hole
Features & Applications

The 5787362-9 is a 100 Position 1.27 mm Pitch Series III Right-Angle PCB Through Hole Receptacle.

Features:

  • Product Type = Connector
  • PCB Mounting Orientation = Right Angle
  • Termination Method to PC Board = Through Hole - Solder
  • PCB Mount Retention = With
  • PCB Mount Alignment = Without
  • Shell Type = Full Metal
  • Bracket Plating = Nickel over Copper
  • Boardlock Material = Copper Alloy
  • Boardlock Plating = Tin over Nickel
  • Shielded = Yes
  • Termination Post Length (mm [in]) = 3.05 [0.120]
  • Number of Positions = 100
  • PCB Mount Retention Type = Boardlock(s)
  • Contact Base Material = Phosphor Bronze
  • Connector Style = Receptacle
  • RoHS/ELV Compliance = RoHS compliant, ELV compliant





Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
10 Weeks
Minimum Order:
432
Multiple Of:
216
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$9,218.88
USD
Quantity
Unit Price
216+
$21.34
