EDAC | 627-009-220-046

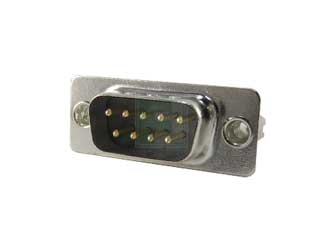

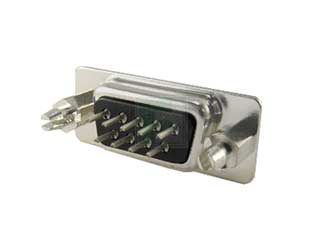

The 627-009-220-046 is a part of 627 Series 9 Position Gold Flash (Class 3) Metal covered 7.00mm low profile Board Mount D-Sub connector

Features:

• Both low and high profiles available:
• .109” (2.77mm) contact spacingx .112” (2.82mm) row spacing.
• Plug and receptacle in 9-, 15-, 25-, 37- and 50-pin contact
• Pin and socket contact mating design with PC tail termination.
• Metal shell provides EMI/RFI shielding
• D-shaped connector mating outline provides polarization design based on requirements of
• MIL-C-24308, EIA RS-232 and RS-449.

Specifications:

• Insulator Material: Thermoplastic polyester,
• UL 94V-0; chemical resistant; colour - black.
• Attenuation:
  • 20dB MIN @ 30 Mhz
  • 30dB MIN @ 50 Mhz
  • 50db MIN @ 100 Mhz.
• Contact Material:
  • Plug contacts - brass;
  • receptacle contacts - phosphor bronze.
• Contact Plating: Gold over nickel
• Shell Material: Nickel-plated steel
• Current Rating: 5 amperes.
• Contact Resistance: 10 milliohms maximum.
• Dielectric Withstanding Voltage: 1000 V AC rms at sea level.
• Insulation Resistance: 5000 megohms minimum.
• Operating Temperature: -55° to +105° C.
• Engagement and Separation Force:(0.28 to 2.78 N)
