Manufacturer Part #
745203-9

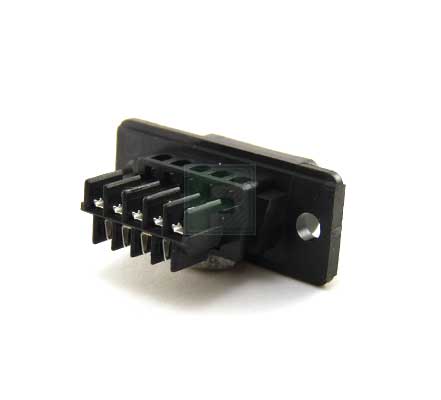

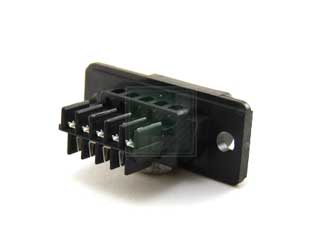

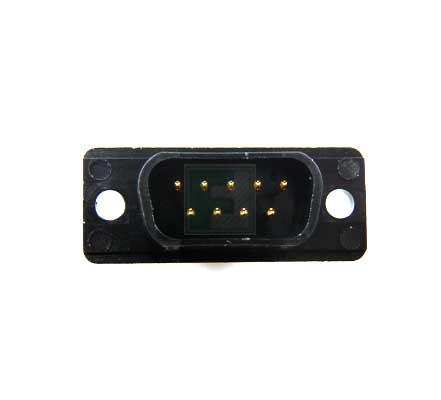

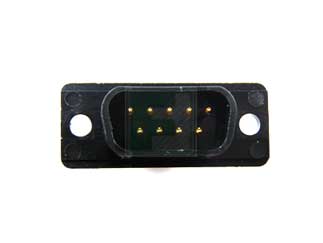

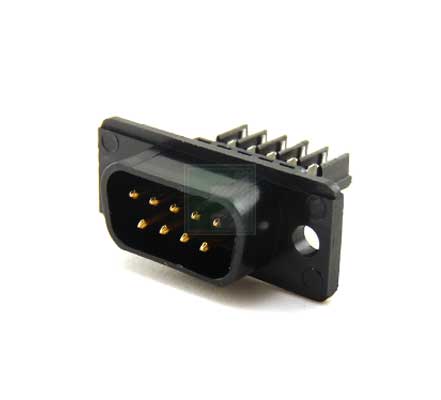

HDE20 Series 9 Position Plug Plastic Shell Discrete Wire IDC D-Sub
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:560 per Tray | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 745203-9 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=745203-9&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-d-subs/745203-9-te-connectivity-6505770
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=745203-9&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-d-subs/745203-9-te-connectivity-6505770
TE Connectivity 745203-9 - Technical Attributes
Attributes Table
| Style/Orientation: | Standard Cable Plug |
| No of Positions: | 9 |
| No of Rows: | 2 |
| Termination: | IDC |
| Pitch: | 2.77 mm |
| Material: | Plastic |
| Shell Size: | 1 E |
| Gender: | Male |
| Color: | Black |
| Current Rating: | 1.5A to 2.4A |
| Voltage Rating: | 250V |
| Contact Plating: | Gold |
| Insulation Resistance: | 5000MΩ |
| Operating Temperature: | -55°C to +105°C |
Features & Applications
The 745203-9 is a HDE20 Series 9 Position Plug Plastic Shell Discrete Wire IDC D-Sub Connector.
Features:
- Product Type = Connector
- Product Series = HDE-20 (IDC)
- Wire/Cable Type = Discrete Wire, Round Jacketed Cable
- Termination Method to Wire/Cable = Insulation Displacement Crimp (IDC)
- Wire Insulation Diameter (mm [in]) = 1.52 [0.060]
- Mating Connector Lock = With
- Mating Connector Lock Type = Mounting Holes
- Shell Size = 1
- Solder Tail Contact Plating = Matte Tin over Nickel
- Number of Positions = 9 Wire Range (mm² [AWG]) = 0.15 - 0.40 [26-22]
- Contact Size = 20
- Connector Style = Plug
- Contact Type = Pin
- Contact Base Material = Phosphor Bronze
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
9 Weeks
Quantity
Unit Price
560+
$2.86
Product Variant Information section
Available Packaging
Package Qty:
560 per Tray
