Manufacturer Part #
5145246-1
184 Position Dual Row 1.27 mm Vertical Surface Mount PCI Card Edge Connector
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:160 per Tray |
||||||||||
| Date Code: | |||||||||||
TE Connectivity 5145246-1 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
General Description of Changes: We plan to outsource TE existing assembly lines (i.e. transfer existing assembly lines to TE s suppliers). Target transfer schedule to be finished by the end of January 2024.Reason for Changes: To streamline TE s operating efficiencies and align manufacturing resources based on our internal footprint evaluation
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5145246-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--backpanel-connectors/5145246-1-te-connectivity-9011346
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5145246-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--backpanel-connectors/5145246-1-te-connectivity-9011346
TE Connectivity 5145246-1 - Technical Attributes
| Type: | Board to Board (Card Edge) |
| No of Positions: | 184 |
| Pitch: | 1.27 mm |
| Termination: | Surface Mount |
Features & Applications

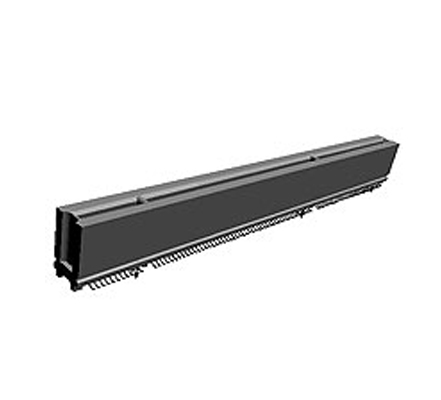

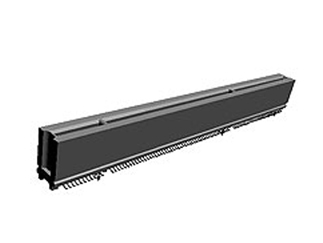

The 5145246-1 is a 184 position vertical surface mount PCI card edge connector.
Features:
- PCB Mounting Orientation = Vertical
- Number of Dual Positions = 92
- PCB Mount Style = Surface Mount
- Holddown Material = Brass
- Voltage (VAC) = 3.3, 5
- Solder Tail Contact Plating = Tin over Nickel
- Family Name = PCI
- Contact Plating, Mating Area, Material = Gold (30)
- Contact Base Material = Phosphor Bronze
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
Available Packaging
Package Qty:
160 per Tray
