Manufacturer Part #
5535071-4

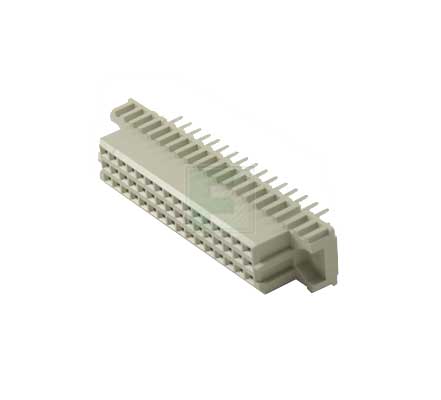

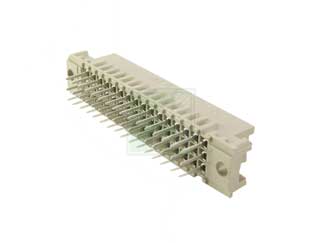

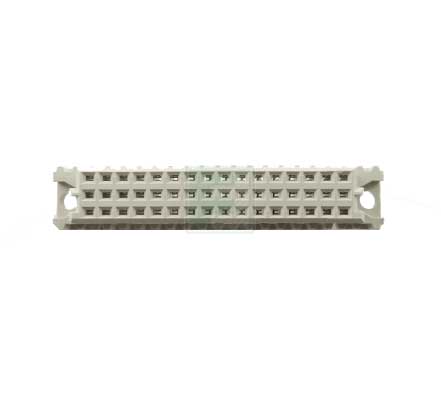

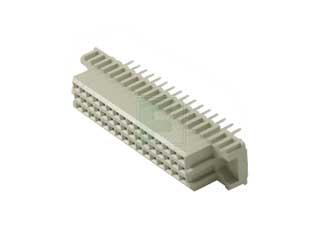

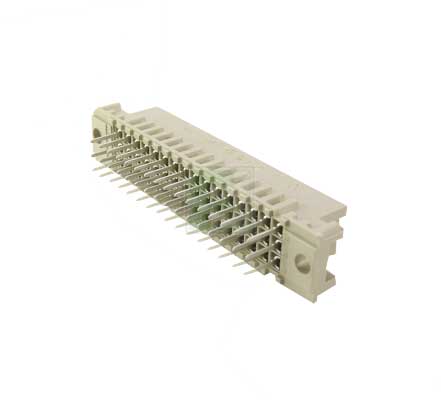

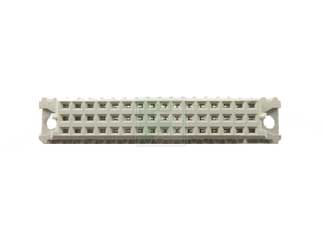

Type C 48 Position 2.54 mm Receptacle Through Hole Eurocard Connector
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:30 per Box Mounting Method:Through Hole |
||||||||||
| Date Code: | |||||||||||
TE Connectivity 5535071-4 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
General Description of Changes: We plan to outsource TE existing assembly lines (i.e. transfer existing assembly lines to TE s suppliers). Target transfer schedule to be finished by the end of January 2024.Reason for Changes: To streamline TE s operating efficiencies and align manufacturing resources based on our internal footprint evaluation.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5535071-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--backpanel-connectors/5535071-4-te-connectivity-9015553
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5535071-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--backpanel-connectors/5535071-4-te-connectivity-9015553
TE Connectivity 5535071-4 - Technical Attributes
| Type: | Board to Board (Card Edge) |
| Style/Orientation: | Receptacle |
| No of Positions: | 48 |
| No of Rows: | 3 |
| Pitch: | 2.54 mm |
| Termination: | Solder |
| Material: | Liquid Crystal Polymer |
| Contact Plating: | Tin |
| Operating Temp Range: | -55°C to +125°C |
| Mounting Method: | Through Hole |
Features & Applications
The 5535071-4 is a 48 position receptacle through hole eurocard type C connector.
Features:
- Connector Type = Connector Assembly
- PCB Mount Retention = Without
- PCB Mounting Orientation = Vertical
- Type = Type C
- Contact Type = Socket
- Contact Base Material = Copper Alloy
- Contact Plating, Mating Area, Material = DIN 41612 Class 2
- Connector Style = Receptacle
- Housing Material = Polymer
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
Available Packaging
Package Qty:
30 per Box
Mounting Method:
Through Hole
