Manufacturer Part #
5-103166-1

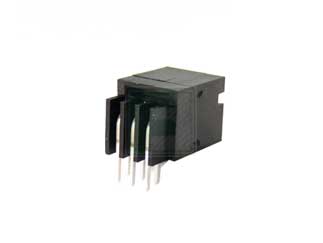

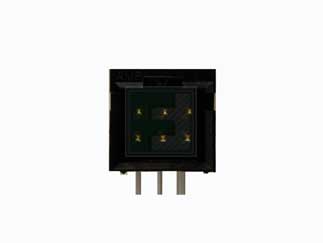

AMPMODU 6 Position Through-Hole Dual Row Right Angle 2.54 mm Shrouded Header
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:464 per Tray Mounting Method:Through Hole |
||||||||||
| Date Code: | 2427 | ||||||||||
TE Connectivity 5-103166-1 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-103166-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/5-103166-1-te-connectivity-4855433
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-103166-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/5-103166-1-te-connectivity-4855433
TE Connectivity 5-103166-1 - Technical Attributes
| No of Positions: | 6 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Right Angle Header/Plug |
| Termination: | Solder |
| Type: | Shrouded Header |
| Mounting Method: | Through Hole |
Features & Applications
The 5-103166-1 is a AMPMODU 6 Position Through-Hole Dual Row Right Angle .100 Inch Shrouded Header.The AMPMODU interconnection system provides interconnections with a unique modular concept, utilizing precision formed receptacle contacts and mating posts.
The AMPMODU receptacle ontacts and posts categorically fall into three general classifications of products, which include: board mounted posts and receptacle assemblies, post headers and wire-applied contact housings for crimp snap-in pin and receptacle contacts.
Product Features:
- Product Type = Connector
- [Shrouded] End Dimension (mm [in]) = 1.68 [0.066]
- Mount Angle = Right Angle
- PCB Mount Retention = Without
- Surface Mount Compatible = No
- Board Standoff = With
- Mounting Ears = Without
- Mating Connector Lock = With
- Mating Connector Lock Type = Detent Windows
- Housing Style = 4-Sided
- Post Size (mm [in]) = 0.64 [.025]
- Profile = Standard
- Header Type = Shrouded
- Number of Positions = 6
- Centerline (mm [in]) = 2.54 [0.100]
- Row-to-Row Spacing (mm [in]) = 2.54 [0.100]
- Number of Rows = 2
View the Available 5-10316 Series of Headers
Available Packaging
Package Qty:
464 per Tray
Mounting Method:
Through Hole
