Mill-Max | 852-10-010-20-001000

Manufacturer Part #

852-10-010-20-001000

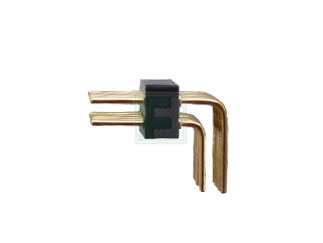

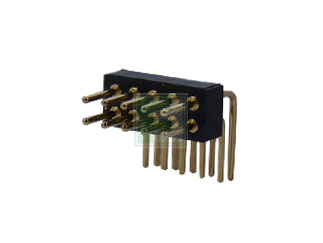

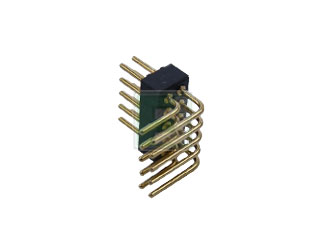

852 Series 10 Position Double Row 1.27 mm Pitch Right Angle Through Hole Header

ECAD Model:
Mfr. Name: Mill-Max
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Mill-Max 852-10-010-20-001000 - Technical Attributes
Attributes Table
No of Positions: 10
Pitch: 1.27 mm
Style/Orientation: Right Angle Header/Plug
Termination: Solder
Type: Pin Headers
Mounting Method: Through Hole
Features & Applications

The 852-10-010-20-001000 is a 10 Position Dual Row Through Hole Right Angle Pin Interconnect Header.

Insulator Specifications:

  • NYLON 46 (Stanyl TE250F6 {30% glass} or TE250F9 {45% glass}, black)
  • High Temperature
  • Properties of NYLON 46:
  • Brand: Stanyl
  • Grade: TE250-F6 or F9
  • Material Heat Deflection Temp. (per ASTM D 648): 554°F (290°C) @ 264 psi

View the Available 852 Series of  Headers

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
2 Weeks
Minimum Order:
50
Multiple Of:
1
Total
$656.50
USD
Quantity
Unit Price
1
$13.58
4
$13.41
15
$13.25
40
$13.13
100+
$12.94
