TE Connectivity | 2042274-2

Manufacturer Part #

2042274-2

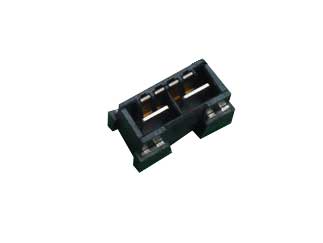

Single Row 2 Position 7.8 mm Spacing Vertical Header Connector

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 2042274-2 - Technical Attributes
Attributes Table
Type: Header
Style/Orientation: Vertical Header/Plug
No of Positions: 2
No of Rows: 1
Pitch: 7.8 mm
Termination: Solder
Voltage Rating: 500V
Current Rating: 40A
Contact Material: Copper Alloy
Contact Plating: Silver
Gender: Male
Color: Black
Operating Temp Range: -40°C to +125°C
Mounting Method: PCB Mount
Features & Applications

The 2042274-2 is a 2 Position Vertical Pin ET Power Connector.

ET Power Connector is also available in Right-angle mount and with 2.5 mm2 (14 AWG) to 6 mm2 (10 AWG) wire range.

Features:

  • Product Type = Pin Connector
  • Product Line = ET Power Connector
  • Orientation = Vertical
  • Color = Black
  • PCB Mounting Orientation = Vertical
  • Contact Type = Pin
  • RoHS/ELV Compliance = RoHS compliant, ELV compliant
  • Lead Free Solder Processes = Wave solder capable to 260°C, Wave solder capable to 240°C, Wave solder capable to 265°C

Applications:

  • Power Distribution
  • Power Supplies
  • Telecoms Base Stations
  • Computer Servers and Storage Systems
  • Industrial Electronic Equipment Cabinets

View the Available List of ET Power Connectors

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
6 Weeks
Minimum Order:
450
Multiple Of:
450
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$1,404.00
USD
Quantity
Unit Price
450+
$3.12
