Manufacturer Part #

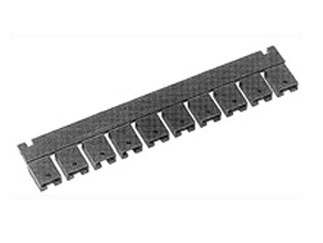

1-382811-6
SHUNT,ECON,PHBR 15AU,BLACK L/P
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1500 per Box | ||||||||||
| Date Code: | 2436 | ||||||||||
Product Specification Section
TE Connectivity 1-382811-6 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-382811-6&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--shunts-jumpers/1-382811-6-te-connectivity-7023989
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-382811-6&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--shunts-jumpers/1-382811-6-te-connectivity-7023989
TE Connectivity 1-382811-6 - Technical Attributes
Attributes Table
| Type: | Shunt |
| No of Positions: | 2 |
| Pitch: | 2.54 mm |
Features & Applications
The 1-382811-6 is a AMPMODU interconnection system provides interconnections with a unique modular concept, utilizing precision formed receptacle contacts and mating posts. These connectors provide cost effective discrete wire connections that are compatible with today's telecommunications.
Features:
- Product Type = Shunt
- Shunt Type = Economy
- Shunt Style = Open Top
- Profile = Low
- Contact - Rated Current (A) = 3
- Dielectric Withstanding Voltage (V) = 1000
- Insulation Resistance (M?) = 1,000
- Number of Positions = 2
- Centerline (mm [in]) = 2.54 [0.100]
- Height (mm [in]) = 6.35 [0.250]
- Contact Plating, Mating Area, Material = Gold (15)
- Contact Base Material = Phosphor Bronze
- Temperature Range (°C) = -65 – +105
View the Complet Series of Shunts & Jumpers
Pricing Section
Global Stock:
4,910
USA:
4,910
On Order:
0
Factory Lead Time:
31 Weeks
Quantity
Unit Price
1
$0.53
50
$0.52
200
$0.505
500
$0.495
2,000+
$0.47
