Manufacturer Part #
1-1658622-0

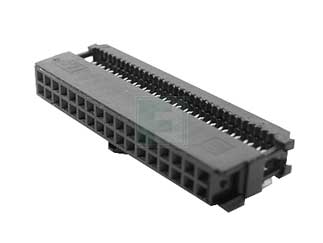

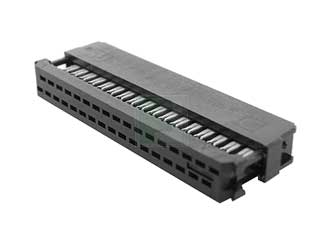

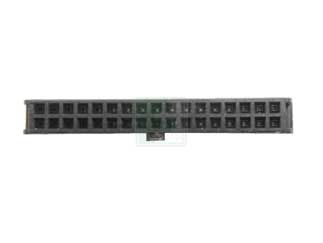

AMP LATCH 50 Position 2.54 mm Pitch NOVO Ribbon Cable IDC Socket
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:36 per Tray Mounting Method:Panel Mount | ||||||||||
| Date Code: | 2433 | ||||||||||
TE Connectivity 1-1658622-0 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Description of Changes1) Introducing PDNi plating as Alternative. 215915 & 215882 : 0.75um (30u") 215919 & 215911 : 0.20um (8u") 2) Manufacturing Location change 3) Packaging ChangeReason for Changes:1) Introducing PDNi plating as Alternative. 2) Manufacturing Location change 3) Packaging Change ( Refer Attachment )
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1658622-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--socket-plug-wire-mount/1-1658622-0-te-connectivity-5619408
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1658622-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--socket-plug-wire-mount/1-1658622-0-te-connectivity-5619408
TE Connectivity 1-1658622-0 - Technical Attributes
| Type: | Cable to Board |
| No of Positions: | 50 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Free Hanging Socket/Receptacle |
| Termination: | IDC |
| Mounting Method: | Panel Mount |
Features & Applications
The 1-1658622-0 is a Part of Amp-Latch Series with 50 Position Dual Row 2.54 mm Pitch NOVO Cable to Board IDC Receptacle Connector.
Features:
- Product Line = AMP-LATCH
- Connector Type = Connector Assembly
- Series = NOVO
- Contact - Rated Current (A) = 1
- Operating Voltage (VAC) = 250
- Wire/Cable Size (AWG) = 26 – 28
- Row-to-Row Spacing in mm = 2.54
- Contact Design = Tuning Fork
- Contact Type = Socket
- Contact Base Material = Phosphor Bronze
- Contact Plating, Mating Area, Material = Gold or Palladium Nickel or Performance Based
- Contact Plating, Mating Area, Thickness (µm [µin]) = 0.762 [30]
- Connector Style = Receptacle
- Mating Alignment Type = Polarization
- Housing Color = Black
- Operating Temperature in °C = -65 – +105
- Applies To = Wire/Cable
- Accepts Wire Insulation Diameter, Range in mm = 0.787 – 0.94
- Application Use = Wire-to-Board
- Contact Transmits (Typical Application) = Signal (Data)
Mating Products:
- 1-111446-7
- 499252-4
- 1-111506-4
- 499252-4
View the 1-1658622x Series of Amp-Latch Connectors
Available Packaging
Package Qty:
36 per Tray
Mounting Method:
Panel Mount
