Manufacturer Part #
1-480271-0

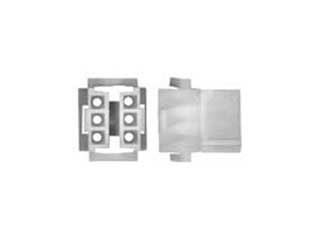

Commercial MATE-N-LOK 6 Position Positive Lock Female Receptacle Housing
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Bag Mounting Method:Panel Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 1-480271-0 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-480271-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/1-480271-0-te-connectivity-7648207
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-480271-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/1-480271-0-te-connectivity-7648207
TE Connectivity 1-480271-0 - Technical Attributes
Attributes Table
| No of Positions: | 6 |
| Contact Termination: | Female/Socket Crimp |
| Style/Orientation: | Receptacle Housing |
| Material: | Nylon |
| Mating Type: | Positive Lock |
| Mounting Method: | Panel Mount |
Features & Applications
The 1-480271-0 is a Commercial MATE-N-LOK Receptacle Housing Connector with 6 Positions and 2 Rows.
Features:
- Product Line = Commercial MATE-N-LOK
- Product Type = Connector
- Connector Type = Housing
- Termination Method to Wire/Cable = Crimp
- Wire/Cable Type = Discrete Wire
- Mating Retention Type = Positive Lock
- Contact - Rated Current (A) = 13
- Operating Voltage Reference = AC
- Operating Voltage (VAC) = 250
- Row-to-Row Spacing (mm [in]) = 9.14 [0.360]
- Contact Type = Pin
- Contact Diameter (mm [in]) = 2.13 [0.084]
- Connector Style = Receptacle
- Centerline (mm [in]) = 4.95 [0.195]
- Housing Material = Nylon
- Housing Color = Natural
- Connector Style = Receptacle
- Centerline (mm [in]) = 4.95 [0.195]
- Housing Material = Nylon
- Housing Color = Natura
- Number of Positions = 6
- Number of Rows = 2
- Applies To = Wire/Cable
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
2,000+
$0.51
Product Variant Information section
Available Packaging
Package Qty:
2000 per Bag
Mounting Method:
Panel Mount
