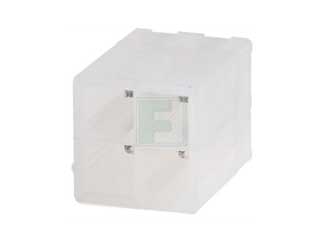

VAL-U-LOK Series 4 Position Solder Locking Ramp Pin Header Connector
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:600 per Tray Mounting Method:PCB Mount |
||||||||||
| Date Code: | 1911 | ||||||||||
TE Connectivity 1586037-4 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Description of Change:*Change manufacturing location.*Certification*Logo*Marking*Material*Inside dimensions are different but insertion feeling keeps at the similar level.*The package appearance may look a little different.Reason for Change:The listed part numbers, currently sourced from a manufacturing site in China, will transition to another site in China starting (Oct.17). Product approvals have been updated from CSA to cULus, covering both CSA and UL standards. New material is of the same grade and performance. An internal release per TE specifications will be completed before shipment to ensure compliance and performance.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1586037-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/1586037-4-te-connectivity-5062732
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1586037-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/1586037-4-te-connectivity-5062732
TE Connectivity 1586037-4 - Technical Attributes
| No of Positions: | 4 |
| No of Rows: | 2 |
| Contact Termination: | Solder |
| Pitch: | 4.2 mm |
| Style/Orientation: | Header |
| Termination: | Solder |
| Operating Temp Range: | -40°C to +105°C |
| Voltage Rating: | 600V |
| Current Rating: | 9A |
| Contact Material: | Brass Alloy |
| Contact Plating: | Tin |
| Material: | Nylon |
| Gender: | Male |
| Type: | Plug |
| Mating Type: | Locking Ramp |
| Color: | Natural |
| Insulation Resistance: | 1000MΩ |
| Mounting Method: | PCB Mount |
Features & Applications
TE Connectivity (TE) has introduced an extension to its VAL-U-LOK connector product line, adding new parts which offer a higher 13A maximum current capability on a 4.2mm centerline spacing. Earlier VAL-U-LOK connectors have a 9A rating.
APPLICATIONS
• Household appliances
• Industrial machinery
• Automotive systems
• Medical devices
• Vending machines
• Gaming equipment
• HVAC equipment
• Indoor and outdoor lighting
• Security systems
• Storage and networking systems
FEATURES
• Vertical and right-angle pin headers available
• Contacts available in strip form or loose pieces
• UL recognized
• CSA certified
Available Packaging
Package Qty:
600 per Tray
Mounting Method:
PCB Mount
