Manufacturer Part #
207017-1

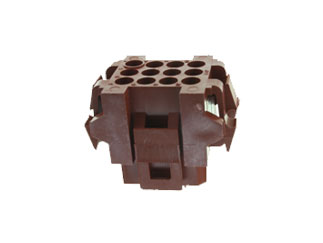

12 Position 5 mm Free Hanging Plug Housing Metrimate Connector
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:375 per Bag |
||||||||||
| Date Code: | 2545 | ||||||||||
TE Connectivity 207017-1 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=207017-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/207017-1-te-connectivity-5027883
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=207017-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/207017-1-te-connectivity-5027883
TE Connectivity 207017-1 - Technical Attributes
| No of Positions: | 12 |
| Contact Termination: | Crimp Terminal |
| Style/Orientation: | Free Hanging Plug |
| Mating Type: | Locking Latch |
Features & Applications
These connectors offer improvements in durability, density and electrical performance over competitive soft-shell pin and socket connectors.They are ideally suited for equipment manufacturers engaged in both national and international markets. This versatile pin and socket connector line is designed to meet the general requirements of various testing and approval agencies, including UL, CSA, VDE and IEC
Product Features:
- Product Type = Housing
- Connector Type = Housing
- Gender = Plug
- Keyed = No
- Mount = Free Hanging, Panel
- Mounting Ears = Without
- Mating Connector Lock = With
- PCB Mount Retention = Without
- Mating Connector Lock Type = Locking latch
- Voltage (VAC) = 600
- Connector Configuration = Square Grid
- Number of Positions = 12
- Coaxial Socket = Without
- Centerline (mm [in]) = 5.00 [0.197]
- Jackscrew = Without
- Mating Alignment Type = Polarizing Tab
- Housing Material = Technyle
- Housing Color = Red
- UL Flammability Rating = UL 94V-0
Available Packaging
Package Qty:
375 per Bag
