TE Connectivity | 770022-1

Manufacturer Part #

770022-1

MATE-N-LOK II 12 Position Positive Lock Free Hanging Plug Housing Kit

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 770022-1 - Technical Attributes
Attributes Table
No of Positions: 12
No of Rows: 3
Contact Termination: Crimp Terminal
Pitch: 6.35 mm
Style/Orientation: Free Hanging Plug
Termination: Crimp
Operating Temp Range: -55°C to +120°C
Voltage Rating: 600V
Contact Material: Phosphor Bronze
Material: Nylon
Gender: Male
Type: Plug
Mating Type: Positive Lock
Color: White
Insulation Resistance: 1000MΩ
Features & Applications

The 770022-1 is a Universal MATE-N-LOK II 12 Position Positive Lock Free Hanging Plug Connector. AMP Soft Shell Pin and Socket connectors provide a highly reliable and economic means of grouping multiple-lead connections in today's computer, computer/peripheral equipment, business machines, entertainment centers, appliances and other sophisticated commercial equipment.

The electrical connector is an integral component in these applications. They also offer worldwide application approval because of their reliability and economy. Electrical functions have increased in complexity and new designs continually call for the maximum use of space. The Soft Shell Pin and Socket family of connectors offers the design and features to answer these modern industry requirements.

Product Type Features:

  • Product Type = Connector
  • Product Line = Universal MATE-N-LOK II
  • Connector Type = Housing
  • Mount = Free Hanging
  • Color = White
  • Mating Retention Type = Positive Lock
  • Centerline (mm [in]) = 6.35 [0.250]
  • Number of Positions = 12
  • Mating Retention = With
  • Contact Diameter (mm [in]) = 2.13 [0.084]

Applications:

  • ATM Machines
  • Inkjet
  • MFP/LBP
  • Networking (Communications)
  • Power (Multi-User)
  • Projector
  • Scanner

Mating Products:

  • 770029-1
  • 770055-1
  • 770056-1
  • 350713-1
  • 350713-4
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
12 Weeks
Minimum Order:
250
Multiple Of:
250
Total
$248.75
USD
Quantity
Unit Price
250
$0.995
500
$0.98
750
$0.97
1,000
$0.965
1,250+
$0.945
Product Variant Information section
Related Products
770021-1
770021-1
TE Connectivity
MATE-N-LOK II 9 Position Positive Lock Free Hanging Plug Housing Kit
As low as: $0.835 (USD)
770024-1
770024-1
TE Connectivity
Universal MATE-N-LOK II 2 Position Positive Lock Receptacle Housing Connector
As low as: $0.55 (USD)
770023-1
770023-1
TE Connectivity
MATE-N-LOK II 15 Position Positive Lock Free Hanging Housing Plug
As low as: $1.14 (USD)
770020-1
770020-1
TE Connectivity

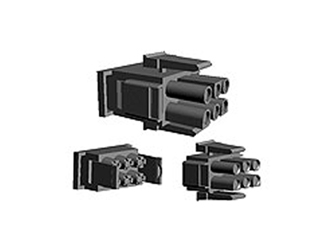

MATE-N-LOK II 6 Position Positive Lock Free Hanging Plug Housing Kit
