Manufacturer Part #
154717-3

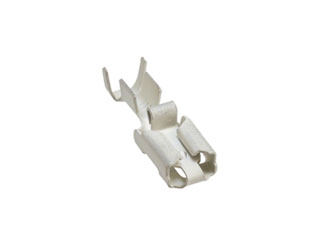

13-11 AWG Non-Insulated 6.35 x 0.81 mm Socket Positive Lock Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1500 per Reel | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 154717-3 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Description of ChangesDear Valued Customer, This is a correction to the PCN's listed below. As mentioned in the previous PCNs, mixed shipments may be possible until September 30th, 2025. The "Last Date for Mixed Shipment" box in this PCN now matches this date. PCN-24-198118, PCN-24-198122, PCN-24-198106, PCN-24-198129, PCN-24-198131, PCN-24-198087, PCN-24-198098, PCN-24-198100, PCN-24-198185Reason for Changes:Corrective PCN to clarify last date for mixed shipments.
General Description of Changes: Dear Valued Customer, the listed part numbers are currently sourced from TE Connectivity (TE) manufacturing site in Collegno (Italy). These part numbers may be sourced from TE Collegno manufacturing site, TE Qingdao (China) manufacturing site & TE Lickdale (US) manufacturing site from a period starting on May 1st, 2024 until September 30th, 2025, at the latest. Mixed shipments may be possible. After September 30th, 2025, these part numbers will be dual sourced from TE Qingdao (China) manufacturing site & TE Lickdale (US) manufacturing site. An internal release based on applicable TE specifications will be executed before any parts will be delivered, to ensure product performance is compliant with applicable TE specifications. If there is a change to the above listed schedule, we will update you furtherReason for Changes: Manufacturing location change
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=154717-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--crimp-terminals/154717-3-te-connectivity-9004849
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=154717-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--crimp-terminals/154717-3-te-connectivity-9004849
TE Connectivity 154717-3 - Technical Attributes
| Size: | Tab 0.250" x 0.032" |
| Style: | Non-Insulated |
| Type: | Receptacle |
| Contact Plating: | Tin |
| Gender: | Female |
Features & Applications
The 154717-3 is a part of 15471 series 13-11 AWG non-insulated 6.35 x 0.81 mm socket positive lock connector.
Features:
- Product Type Features:
- Product Type = Contact
- Mating Area Interface Dimensions (mm [in]) = 6.35 x 0.81 [.250 x .032]
- Receptacle Style = Straight
- Insulation Diameter (mm [in]) = 3.56-4.32 [.140-.170]
- Material = Brass
- Body Features:
- Wire Range (mm [AWG]) = 2.50-4.00² [13-11]
- Stock Thickness (mm [in]) = 0.41 [0.016]
- Contact Features:
- Contact Type = Socket
Available Packaging
Package Qty:
1500 per Reel
