Manufacturer Part #
321873

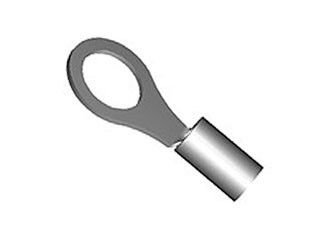

Solistrand 2/0 AWG Straight Closed Barrel Ring Tongue Terminal
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Box | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 321873 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=321873&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--crimp-terminals/321873-te-connectivity-7321672
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=321873&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--crimp-terminals/321873-te-connectivity-7321672
TE Connectivity 321873 - Technical Attributes
Attributes Table
| Size: | Stud 1/2" |
| Style: | Non-Insulated |
| Type: | Ring |
| Wire Gauge: | AWG 2/0 |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Gender: | Female |
| Operating Temp Range: | 170°C |
Features & Applications
The 321873 is a SOLISTRAND and Budget terminals and splices are specially designed to terminate solid and stranded wire, irregular shaped conductors, and combinations of these—retaining the superior performance characteristics of single-purpose terminals and splices.
Corrosion resistance, vibration resistance and tensile strength of these terminals and splices are well within the limits of commercial and military specifications.
Features:
- Terminal Shape = Ring Tongue
- Receptacle Style = Straight
- Body Style = SOLISTRAND
- Barrel Type = Closed Barrel
- Wire/Cable Type = Regular Wire
- Insulation = No
- Insulation Support = Non-Insulation Support
- Stud Diameter (mm [in]) = 12.70 [0.500]
- Stud Size = 1/2 [M12]
- Shape = RING-049
- Heavy Duty = No
- Material = Copper
- Finish = Tin
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
500+
$4.36
Product Variant Information section
Available Packaging
Package Qty:
500 per Box
