Manufacturer Part #
54774-2

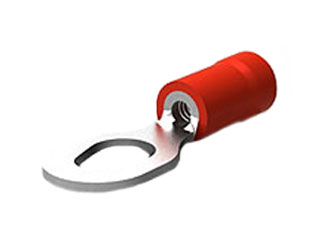

Plasti-Grip 22-16 AWG Straight Closed Barrel Multiple Stud Terminal
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Reel | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
Part Status:
Active
Active
Technical Attributes
Attributes Table
| Size: | Stud 6, 8, 10 |
| Style: | Non-Mating End Insulated |
| Type: | Ring |
| Wire Gauge: | AWG 16-22 |
Features & Applications
The Plasti-Grip Series is a 22-16 AWG Straight Closed Barrel Multiple Stud Terminal
Features:
- Terminal Shape = Multiple Stud
- Receptacle Style = Straight
- Body Style = PLASTI-GRIP
- Barrel Type = Closed Barrel
- Wire/Cable Type = Regular Wire
- Insulation = Yes
- Insulation Support = Insulation Support
- Insulation Diameter (mm [in]) = 3.18 [.125] Max.
- Stud Diameter (mm [in]) = 3.51 [0.138], 4.17 [0.164], 4.83 [0.191]
- Stud Size = 10, 6, 8
- Shape = RING-059
- Heavy Duty = No
- Material = Copper
- Finish = Tin
- Color = Red
- Insulation Material = Vinyl
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Web Price
5,000+
$0.285
Product Variant Information section
Available Packaging
Package Qty:
5000 per Reel
