TE Connectivity | 1473005-1

Manufacturer Part #

1473005-1

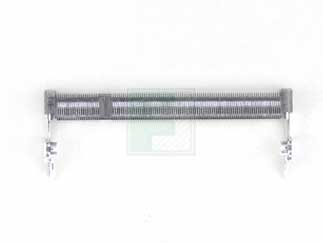

200 Position Dual Row Right Angle Double Data Rate SO DIMM Memory Card Socket

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code: 2426
Product Specification Section
Features & Applications

The 1473005-1 is a part of SO DIMM series 200 Position 0.6 mm Pitch Right Angle Double Data Rate DIMM Socket Surface Mount

Product Features:

  • Socket Style = SO DIMM
  • DRAM Type = Double Data Rate (DDR)
  • PCB Mount Style = Surface Mount
  • Module Orientation = Right Angle
  • Profile = Standard
  • Socket Type = Memory Card
  • Number of Positions = 200
  • Row-to-Row Spacing (mm [in]) = 6.20 [0.244]
  • Centerline (mm [in]) = 0.60 [0.024]
  • Number of Rows = Dual
  • Ejector Type = Locking
  • Ejector Location = Both Ends
  • Number of Keys = 1
  • Latch Material = Stainless Steel
  • Latch Plating = Tin
  • Boss = With
  • Mount Type = Printed Circuit Board





Read More...
Pricing Section
Global Stock:
7,809
USA:
7,809
On Order:Order inventroy details
6,720
Factory Stock:Factory Stock:
0
Factory Lead Time:
7 Weeks
Minimum Order:
1
Multiple Of:
1
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$2.63
USD
Quantity
Unit Price
1
$2.63
20
$2.58
50
$2.55
150
$2.51
400+
$2.44
