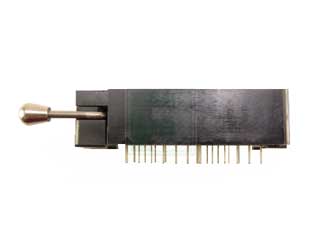

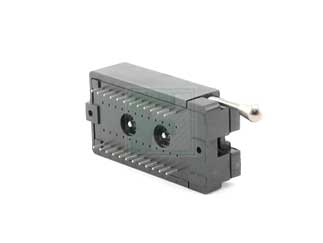

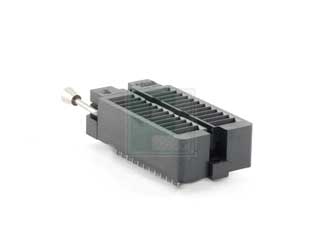

Aries | 24-6554-10

The 24-6554-10 is a part of XX-X55X Series Universal Zero Insertion Force ZIF DIP Test Socket.

Features:

• Aries Universal Test Socket accepts devices on 0.300 to 0.600 [7.62 to 15.24] centers.
• All pin count sockets go into PCB with either 0.300 or 0.600 [7.62 to 15.24] centers.
• Contacts are normally closed to eliminate dependence on plastic to sustain contact.
• Socket handle can be configured with closed contacts (on) when in the UP or DOWN position, and can be mounted on either the right or left side.
• Sockets can be soldered into PCBs or plugged into any socket. Socket fits into Aries’ or any competitive test socket receptacle.

Specifications:

• SOCKET BODY: black UL 94V-0 glass-filled Polyphenylene Sulfide (PPS)
• HANDLE: Stainless Steel
• HANDLE KNOB: Brass 360, 1/2-hard
• BeNi CONTACT PLATING: 50µ [1.27µ] min. NiB
• CONTACT CURRENT RATING: 1 amp
• INSULATION RESISTANCE: 1000 mO min.
• DIELECTRIC WITHSTANDING VOLTAGE: 1000 VAC
• LIFE CYCLE: 25,000 to 50,000 cycles
