TE Connectivity | 87215-4

Manufacturer Part #

87215-4

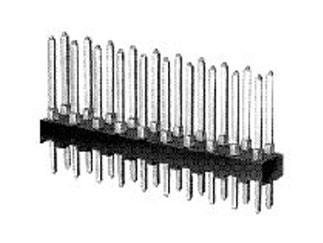

AMPMODU 14 Position Dual Row 2.54 mm Pitch Through Hole Vertical Header

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 87215-4 - Technical Attributes
Attributes Table
Mounting Method: Through Hole
Features & Applications

The 87215-4 is part of AMPMODU strip socket series which provides interconnections with a unique modular concept, utilizing precision formed receptacle contacts and mating posts.  Mating of the post and receptacle contacts of this system is very tolerant.

This is made possible by a post with a burr-free lead-in and a receptacle contact featuring double cantilever beams and antioverstress stops.Operating temprature ranges from -65°C to +105°C

Product Features:

  • 14 Positions
  • Mating Post Length = 8.08 mm
  • 2.54 mm Centerline
  • Mating Post Length  = 8.08 mm
  • Current Rating (A) = 3
  • Dielectric Withstanding Voltage (V) = 750
  • Solder Tail Contact Plating = Gold Flash over Nickel
  • Mount Type = Printed Circuit Board
  • Contact Plating, Mating Area, Material = Gold (30)
  • Contact Shape = Square
  • Contact Base Material = Phosphor Bronze
  • Housing Material = Thermoplastic - GF
  • Lead Free Solder Processes = Wave solder capable to 240°C
  • RoHS/ELV Compliance History = Always was RoHS compliant

View the complete series of AMPMODU strip socket
