Manufacturer Part #
62650-1

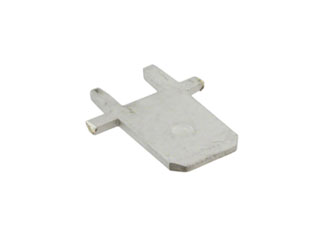

Faston Straight Non-Insulated 6.35 x 0.81 mm Quick Disconnect Tab Terminal
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:18000 per Reel Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 62650-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=62650-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--crimp-terminals/62650-1-te-connectivity-4089629
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=62650-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--crimp-terminals/62650-1-te-connectivity-4089629
TE Connectivity 62650-1 - Technical Attributes
| Size: | Tab 0.250" x 0.032" |
| Style: | Non-Insulated |
| Type: | Tab |
| Contact Plating: | Tin |
| Gender: | Male |
| Operating Temp Range: | -30°C to +110°C |
| Mounting Method: | Through Hole |
Features & Applications
The FASTON Series is a Straight Non-Insulated 6.35 x 0.81 mm Quick Disconnect Tab Terminal designed to be used with the FASTON terminal line.
They come in sizes ranging from 6.35 [.250], 5.21 [.205], 4.75 [.187] and 2.79 [.110] and are available in multiple positions and configurations. Included in this line are special connectors, including water valve connectors, Microswitch connectors, gas valve connectors, and various other special application connectors.
Many of these housings are available in both V-2 and V-0 rated materials. Translucent plastic insulating sleeves are available for use with FASTON receptacles and flags.
Features:
- Product Type = Terminal
- Terminal Type = Tab
- Mating Area Interface Dimensions (mm [in]) = 6.35 x 0.81 [.250 x .032]
- Material = Brass
- Finish = Tin
- Mount Angle = Straight
- Insulation Support = Without
- PCB Hole Diameter (mm [in]) = 1.40 [0.055]
Available Packaging
Package Qty:
18000 per Reel
Mounting Method:
Through Hole
