Manufacturer Part #
1-350944-0

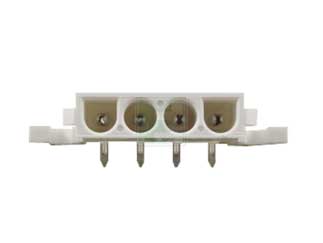

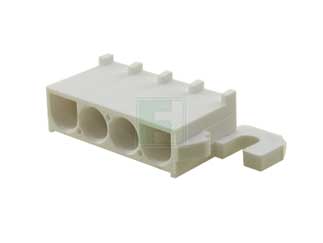

4 Position 6.35 mm Pitch Through Hole Right Angle Connector Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:140 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | 2404 | ||||||||||
Product Specification Section
TE Connectivity 1-350944-0 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-350944-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/1-350944-0-te-connectivity-7526015
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-350944-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/1-350944-0-te-connectivity-7526015
TE Connectivity 1-350944-0 - Technical Attributes
Attributes Table
| No of Positions: | 4 |
| Pitch: | 6.35 mm |
| Style/Orientation: | Right Angle Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -40°C to +105°C |
| Voltage Rating: | 600V |
| Current Rating: | 19A |
| Contact Plating: | Tin |
| Material: | Nylon |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Header |
| Mating Type: | Positive Lock |
| Color: | Natural |
| Mounting Method: | Through Hole |
Features & Applications
The 1-350944-0 is a Universal MATE-N-LOK 4 Position Through-Hole Single Row Right Angle Header
Product Features:
- Product Type = Connector
- Product Line = Universal MATE-N-LOK
- Connector Type = Header
- Color = White
- PCB Mount Alignment = With
- Mount Angle = Right Angle
- Centerline (mm [in]) = 6.35 [0.250]
- Number of Positions = 4
- Mating Retention = With
- Contact Type = Pin
- Contact Layout = In-Line
- Contact Termination Type = Through Hole
- Contact Plating, Mating Area, Material = Pre-Tin
- Contact Base Material = Phosphor Bronze
- Sealable = No
Mating Products:
- 350777-1
- 770017-1
- 350848-2
View the Complete MATE-N-LOK Series of Header Plug
Pricing Section
Global Stock:
280
USA:
280
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1
$1.09
30
$1.07
100
$1.04
300
$1.01
1,000+
$0.96
Product Variant Information section
Available Packaging
Package Qty:
140 per Box
Mounting Method:
Through Hole
