NorComp | 172-E09-103R001

Manufacturer Part #

172-E09-103R001

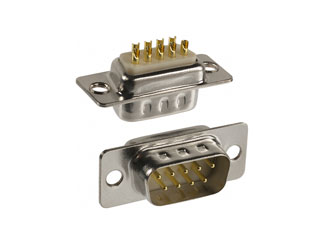

172 Series 9 Position Dual Row Through Hole Male Dip Solder D-Sub Connector

ECAD Model:
Mfr. Name: NorComp
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
NorComp 172-E09-103R001 - Technical Attributes
Attributes Table
No of Positions: 9
Style/Orientation: Plug
Termination: Solder
Type: Pin Headers
Mounting Method: Through Hole
Features & Applications

The 172-E09-103R001 is a 9 Position Solder Cup Male D-Sub Connector.

Features:

  • Available in 5 industry sizes/positions (9, 15, 25, 37, 50)
  • Low cost economy series
  • Non-removable contacts
  • Nickel or Tin shells available
  • Male Nickel shells have indents to provide grounding and additional retention
  • Screw machine contacts offer high reliability
  • Optional mounting hardware available

Materials:

  • Shell: Steel with Tin or Nickel Plating
  • Insulator: Glass-filled thermoplastic. U.L. rated 94V-O
    • (260°C process temp for cable applications)
    • (230°C process temp for board applications)
  • Machined contacts:
    • Male pins - Brass
    • Female pins - Brass
  • Plating: Gold flash on entire contact
  • contact factory for other plating options

View the Available 172-E Series of D-Sub Connectors

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
250
Multiple Of:
50
Total
$462.50
USD
Quantity
Unit Price
50
$1.89
150
$1.86
250
$1.85
500
$1.83
1,000+
$1.80
