TE Connectivity | 2106489-2

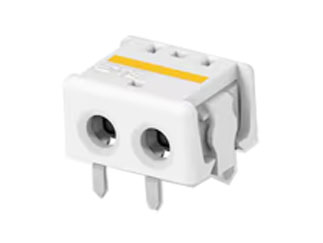

The 2106489-2 is a IDC SSL Series 2 Position 18 AWG Thru Hole Closed End Connector.These  series are insulation displacement (IDC) wire-to-board connectors designed for quick, tool-less termination of discrete wires onto LED printed circuit boards.

These connectors use insulation displacement technology to provide a robust, stable electrical and mechanical power connection to single or multiple printed circuit boards in  solid state lighting and non-lighting applications.

Product Features:

• Connector Type = Connector Assembly
• Connector Design = Closed End
• Strain Relief = With
• Sealed = No
• Termination Method to PC Board = Through Hole
• PCB Mount Retention = Without
• SMT Compatible = No
• Mount Angle = Right Angle
• Wire/Cable Type = Discrete Wire
• Termination Method to Wire/Cable = IDC
• Keyed = No
• Make First / Break Last = No
• Tail Orientation = Staggered
• Wire/Cable Size (AWG) = 18
• Centerline (mm [in]) = 4.00 [0.157]
• Number of Positions = 2
• Number of Rows = 1
• Operating Temperature = -40°C to +105°C

Applications:

• LED lighting controls
• General illumination LED fixtures
• Connecting strings of pcb LED light modules
• Non-lighting wire-to-board applications
