Manufacturer Part #

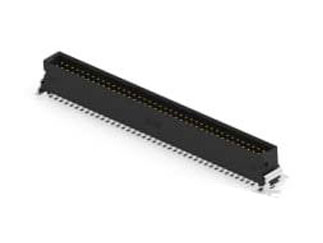

244840-E
SMCQ 80 M AB VV 8-13 CL * H007 137 E005
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:280 per Reel Mounting Method:Surface Mount |
||||||||||
| Date Code: | 2309 | ||||||||||
TE Connectivity 244840-E - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Background and motivation:With the acquisition of ERNI in September 2021, TE Connectivity decided to invest into a new 3.600 m2 building and plating lines on the properties of the ERNI plant in Adelberg, Germany.The facility expansion enables ERNI to enhance technical capabilities and increase the flexibility and reliability of the supply chain:- Improvement of innovation and optimization capability through proximity to product & process development - Increased capacity & flexibility as well as shortening of lead times through significantly reduced transport routes and the ability to react faster & consistently to changes in the supply chain - Direct influence on product quality and short control loops in close cooperation with quality, stamping and final assembly department on site .
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=244840-E&field4=TE Connectivity&field18=https://p1emea.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/244840-e-te-connectivity-1171737
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=244840-E&field4=TE Connectivity&field18=https://p1emea.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/244840-e-te-connectivity-1171737
TE Connectivity 244840-E - Technical Attributes
| No of Positions: | 80 |
| Pitch: | 1.27 mm |
| Style/Orientation: | Vertical |
| Termination: | Solder |
| Operating Temp Range: | -55°C to +125°C |
| Current Rating: | 1.7A |
| Contact Plating: | Gold |
| Material: | LCP |
| No of Rows: | 2 |
| Gender: | Male |
| Type: | Shrouded Header |
| Mating Type: | Push - Pull |
| Color: | Black |
| Insulation Resistance: | 10GΩ |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
280 per Reel
Mounting Method:
Surface Mount
