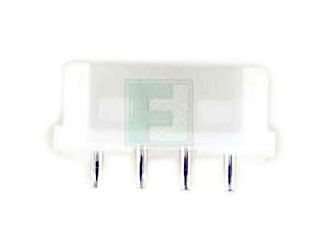

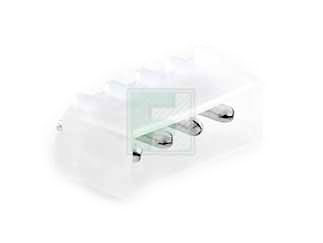

TE Connectivity | 350211-1

The 350211-1 is a Commercial MATE-N-LOK 4 Position Through-Hole Single Row Straight Pin Header. AMP Soft Shell Pin and Socket connectors provide a highly reliable and economic means of grouping multiple-lead connections in today's computer, computer/peripheral equipment, business machines, entertainment centers, appliances and other sophisticated commercial equipment.

The electrical connector is an integral component in these applications. They also offer worldwide application approval because of their reliability and economy. Electrical functions have increased in complexity and new designs continually call for the maximum use of space. The Soft Shell Pin and Socket family of connectors offers the design and features to answer these modern industry requirements.

Product Type Features:

• Product Line = Commercial MATE-N-LOK
• Product Type = Connector
• Connector Type = Header
• Termination Method to PC Board = Through Hole
• PCB Mounting Orientation = Vertical
• CSA File Number = LR7189
• UL File Number = E28476
• Mating Retention Type = Detent Lock
• Contact Diameter (mm [in]) = 2.13 [0.084]
• Number of Positions = 4
• Number of Rows = 1

Applications:

• ATM Machines
• Inkjet
• MFP/LBP
• Networking (Communications)
• Power (Multi-User)
• Projector
• Scanner

Mating Products:

• 1-480424-0
• 1-480424-9
• 770156-2
• 794036-3
• 770156-4
