Manufacturer Part #
B12B-XH-A(LF)(SN)

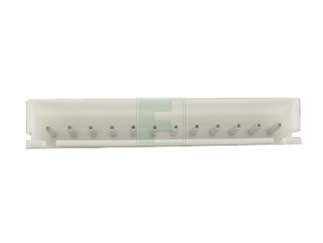

XH Series 12 Position 2.5 mm Pitch Through Hole Shrouded Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:250 per Bag Mounting Method:Through Hole | ||||||||||
| Date Code: | 2431 | ||||||||||
Product Specification Section
JST B12B-XH-A(LF)(SN) - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B12B-XH-A(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/b12b-xh-a-lf-sn-jst-2563914
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B12B-XH-A(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/b12b-xh-a-lf-sn-jst-2563914
JST B12B-XH-A(LF)(SN) - Technical Attributes
Attributes Table
| No of Positions: | 12 |
| Pitch: | 2.5 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Crimp |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 250V |
| Current Rating: | 3A |
| Contact Plating: | Tin |
| Material: | Polyamide |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Shrouded Header |
| Mating Type: | Detent Lock |
| Color: | Natural |
| Insulation Resistance: | 1000MΩ |
| Mounting Method: | Through Hole |
Features & Applications
The B12B-XH-A(LF)(SN) is a Part of XH Series 12 Position 2.5 mm Pitch Through hole Shrouded Header. Its operating Temperature ranges from -25 °C to +85 °C.
Features:
- Original folded beam contact
- Box-shaped shrouded header
- Header with a boss
- Interchangeability
- Conforming to the HA terminal
Specifications:
- Current rating: 3 A
- Voltage rating: 250 V
- Temperature range: - 25 °C to +85 °C
- Contact resistance: Initial value/10 mO max, After environmental testing/20 mO max
- Insulation resistance: 1,000 MO min
- withstanding Voltage: 1,000 V AC/minute
- Applicable wire: AWG #30 to #22
- Applicable PC board thickness: 1.6 mm
View the Series of Headers
Pricing Section
Global Stock:
308
USA:
308
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1
$0.245
125
$0.24
400
$0.235
1,250
$0.23
4,000+
$0.22
Product Variant Information section
Available Packaging
Package Qty:
250 per Bag
Mounting Method:
Through Hole
