Manufacturer Part #
GRPB102VWVN-RC

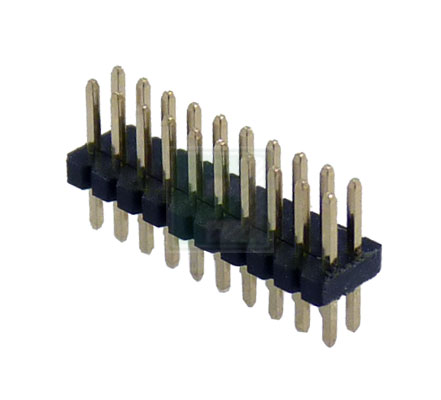

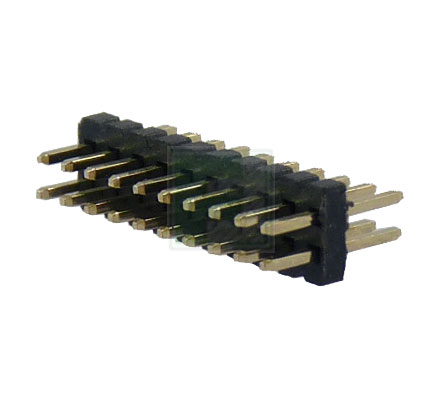

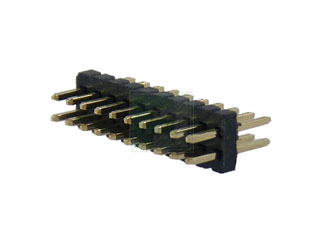

GRPB Series Dual Row 20 Position 1.27 mm Pitch Through Hole Straight Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Sullins | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bag Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Sullins GRPB102VWVN-RC - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=GRPB102VWVN-RC&field4=Sullins&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/grpb102vwvn-rc-sullins-6260236
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=GRPB102VWVN-RC&field4=Sullins&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/grpb102vwvn-rc-sullins-6260236
Sullins GRPB102VWVN-RC - Technical Attributes
Attributes Table
| No of Positions: | 20 |
| Pitch: | 1.27 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -40°C to +105°C |
| Current Rating: | 1A |
| Contact Plating: | Gold Flash |
| Material: | Nylon |
| No of Rows: | 2 |
| Gender: | Male |
| Type: | Header |
| Insulation Resistance: | 5000MΩ |
| Mounting Method: | Through Hole |
Features & Applications
The GRPB102VWVN-RC is a .050" pitch, 1 Row, 6 pins Straight Male Header.
Features:
- Insulators Material: Nylon, 9-T
- Operating Temperature: -40°C to +105°C
- Processing Temperature: 260°C FOR 10 Sec. MAX
- Contact: Brass
- Plating: Gold Flash Overall
- .050" [1.27 mm] Contact Centers
- 20total contacts
- Dual Row
- Straight
- No Mounting
- RoHS Compliant
Specifications:
- 1 amp current rating per contact
- UL Flammability Rating: 94V-O
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
1,000
$0.80
2,000+
$0.78
Product Variant Information section
Available Packaging
Package Qty:
1000 per Bag
Mounting Method:
Through Hole
