Sullins | PBC08DAAN

Manufacturer Part #

PBC08DAAN

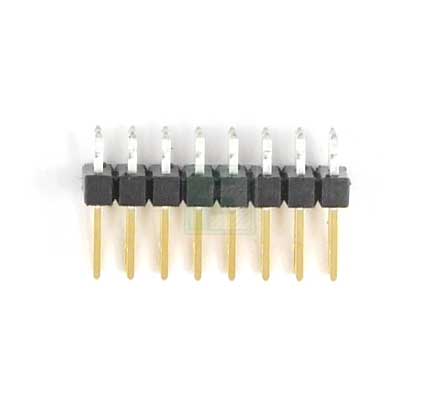

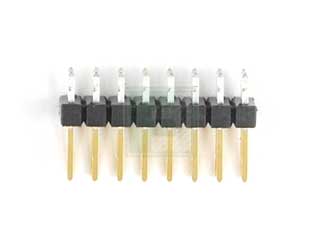

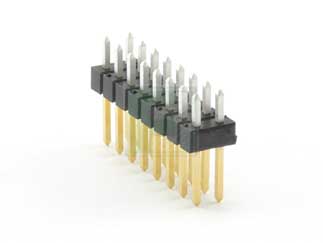

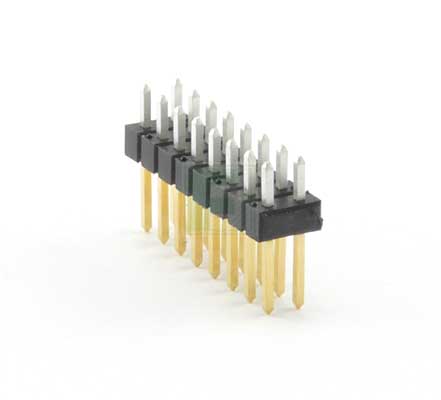

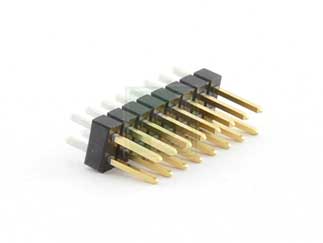

Dual 16 Position 2.54 mm Pitch Header

ECAD Model:
Mfr. Name: Sullins
Standard Pkg:
Product Variant Information section
Date Code: 2630
Product Specification Section
Sullins PBC08DAAN - Technical Attributes
Attributes Table
No of Positions: 16
Pitch: 2.54 mm
Style/Orientation: Straight Header/Plug
Termination: Solder
Type: Breakaway
Features & Applications

The PBC08DAAN is a part of PBC series header. It has an operating temperature ranging from -65°C to + 125°C.

Features:

  • PBT/Phosphor Bronze
  • Processing Temperature: 260° FOR 10 sec. MAX
  • Contact Surface: .000010” Gold; Termination: .000100” Pure Tin, Matte
  • .100” [2.54mm] Contact Centers
  • 16 total contacts
  • Dual Row
  • STRAIGHT, .230" [5.84 mm] HEAD, .120" [3.05 mm] Tail, Male
  • 3 amp current rating per contact
  • UL Flammability Rating: 94V-O
  • Contact Material: Copper Alloy

    View the complete PBC series PCB Interconnect
Pricing Section
Global Stock:
200
USA:
200
On Order:
0
Factory Stock:Factory Stock:
57
Factory Lead Time:
8 Weeks
Minimum Order:
100
Multiple Of:
100
Total
$84.00
USD
Quantity
Unit Price
100
$0.84
300
$0.82
500
$0.81
1,000
$0.795
2,000+
$0.775
