Manufacturer Part #
PBC36DAAN

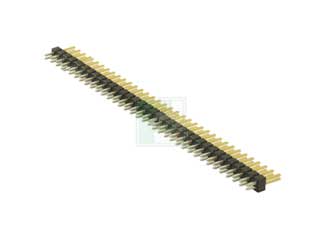

PBC Series 36 Position Dual Row Straight 2.54 mm Pitch Through Hole Header
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Sullins | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:500 per Bulk |
||||||||||
| Date Code: | 2520 | ||||||||||
Product Specification Section
Sullins PBC36DAAN - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
United States
HTS Code:
8536.69.40.40
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PBC36DAAN&field4=Sullins&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/pbc36daan-sullins-7132608
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PBC36DAAN&field4=Sullins&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/pbc36daan-sullins-7132608
Sullins PBC36DAAN - Technical Attributes
Attributes Table
| No of Positions: | 72 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -65°C to +125°C |
| Current Rating: | 3A |
| Contact Plating: | Gold |
| Material: | Polybutylene Terephthalate |
| No of Rows: | 2 |
| Gender: | Male |
| Type: | Breakaway |
| Color: | Black |
| Insulation Resistance: | 5000MΩ |
Features & Applications
The PBC36DAAN is a part of PBC series 36 position through hole dual row straight header. It has an operating temperature ranging from -65°C to + 125°C.
Features:
- PBT/Phosphor Bronze
- Operating Temperature: -65°C to +125°C
- Processing Temperature: 260° FOR 10 sec. MAX
- Contact Surface: .000010” Gold; Termination: .000100” Pure Tin, Matte
- .100” [2.54mm] Contact Centers
- 72 total contacts
- Dual Row
- STRAIGHT, .230" [5.84 mm] HEAD, .120" [3.05 mm] Tail, Male
- No Mounting
View the complete PBC series PCB Interconnect
Pricing Section
Global Stock:
1,261
USA:
1,261
On Order:
0
Factory Lead Time:
3 Weeks
Quantity
Unit Price
10
$2.20
30
$2.17
100
$2.14
200
$2.12
500+
$2.06
