Manufacturer Part #
PBC36SAAN

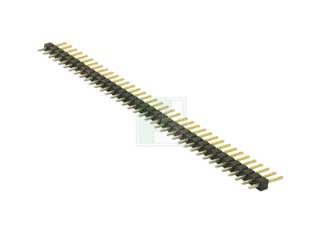

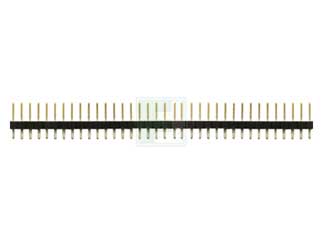

PBC Series Single Row 36 Position 2.54 mm Straight Breakaway Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Sullins | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Bulk | ||||||||||
| Date Code: | 2513 | ||||||||||
Product Specification Section
Sullins PBC36SAAN - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PBC36SAAN&field4=Sullins&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/pbc36saan-sullins-1077940
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PBC36SAAN&field4=Sullins&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/pbc36saan-sullins-1077940
Sullins PBC36SAAN - Technical Attributes
Attributes Table
| No of Positions: | 36 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -65°C to +125°C |
| Current Rating: | 3A |
| Contact Plating: | Gold |
| Material: | Polybutylene Terephthalate |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Breakaway |
| Color: | Black |
| Insulation Resistance: | 5000MΩ |
Features & Applications
The PBC36SAAN is a part of PBC series 36 position through hole single row straight header. It has an operating temperature ranging from -65°C to + 125°C.Features:
- PBT/Phosphor Bronze
- Processing Temperature: 260° FOR 10 sec. MAX
- Contact Surface: .000010” Gold; Termination: .000100” Pure Tin, Matte
- .100” [2.54mm] Contact Centers
- 36 total contacts
- Single Row
- Straight,.230" [5.84 mm] Head,.120" [3.05 mm] TAIL
- No Mounting
View the complete PBC series PCB Interconnect
Pricing Section
Global Stock:
1,530
USA:
1,530
On Order:
0
Factory Lead Time:
3 Weeks
Quantity
Unit Price
1
$1.20
30
$1.18
100
$1.17
300
$1.15
1,000+
$1.12
Product Variant Information section
Available Packaging
Package Qty:
1 per Bulk
