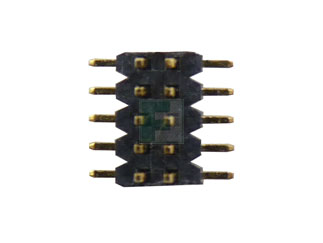

Sullins | SMH102-LPSE-D05-SP-BK

Manufacturer Part #

SMH102-LPSE-D05-SP-BK

10 Position Total Dual Row 1 mm Pitch Surface Mount Male Header

ECAD Model:
Mfr. Name: Sullins
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Sullins SMH102-LPSE-D05-SP-BK - Technical Attributes
Attributes Table
No of Positions: 10
Pitch: 1 mm
Termination: Surface Mount
Type: Header
Mounting Method: Surface Mount
Features & Applications

The SMH102-LPSE-D05-SP-BK is a 039" Gold 2x5 Position (10 Pin) 2.10 mm Profile Surface mount Male Header.

Features:

  • Male Header
  • Insulator height 1.00 mm
  • .000010” Gold Overall
  • 1mm Dual Readout
  • 10 total contacts
  • Surface Mount with Guide posts
  • Black

Specifications:

  • Insulator Material: L.C.P, UL 94V-0, Black color
  • Contact Material: Phosphor Bronze
  • Current Rating: 1 AMP
  • Insulator Resistance: 1000 Mega ohms min
  • Contact Resistance: 20 Milli ohms Max
  • Dielectric Withstandind: AC 300 V
  • Operating Temperature: -40° C to +125° C
  • Processing Temp: 260° C for 10 Secs Max
  • Mates with male SMH Series
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
4,982
Factory Lead Time:
8 Weeks
Minimum Order:
1000
Multiple Of:
1
Total
$1,400.00
USD
Quantity
Unit Price
15
$1.49
40
$1.47
125
$1.45
250
$1.44
750+
$1.40
